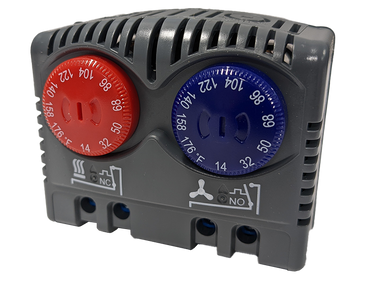

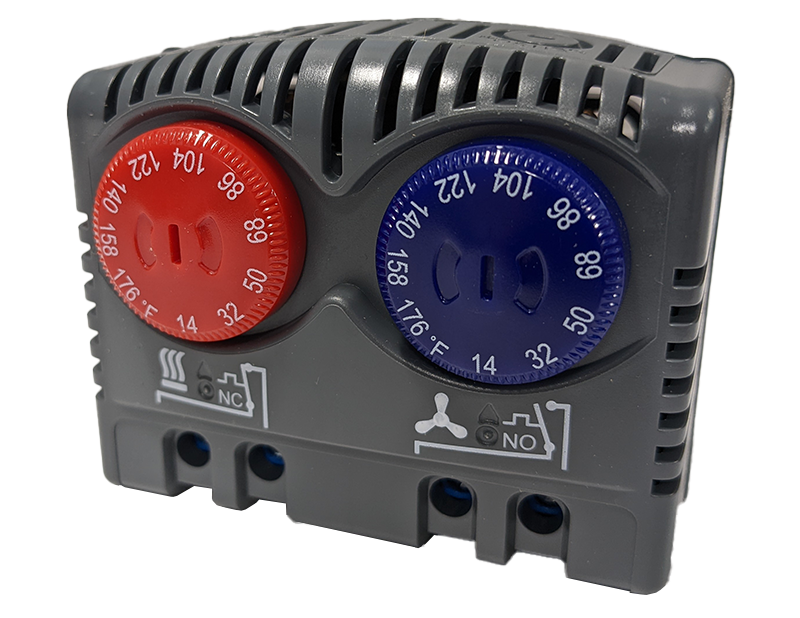

SCE-TEMD | NEMA IS24 | Thermostat (Dual), 2H x 2W x 2D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-TEMD
Overview Details for SCE-TEMD
Application
Designed to regulate air temperature in enclosures that operate with heaters or fans. This mechanical bi-metallic thermostat has a set point range of 30° to 140° F and is easily installed on 35mm mounting rail. Dual functions as (NC) contact normally closed, or (NO) contact normally open, switch capacity 10 amp 120-250VAC Resistive load and 1 amp 120-250VAC Inductive load, 1.25 amp 24VDC.
Industry Standards - (IS24)
- UL Component Recognized
Notes
UL File # E164102
Specifications
Item Number | SCE-TEMD |
Brand | Saginaw |
Enclosure Depth (IN) | 2 |
Enclosure Height (IN) | 2 |
Enclosure Type | Thermostat (Dual) |
Enclosure Width (IN) | 2 |
IS21 Enclosure Rating | NEMA 4 |
