Documents: SCE-TEMNC

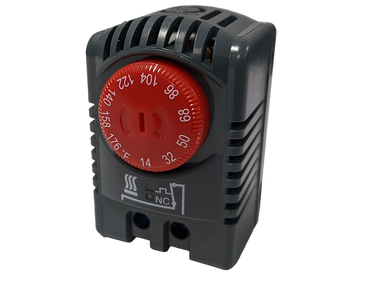

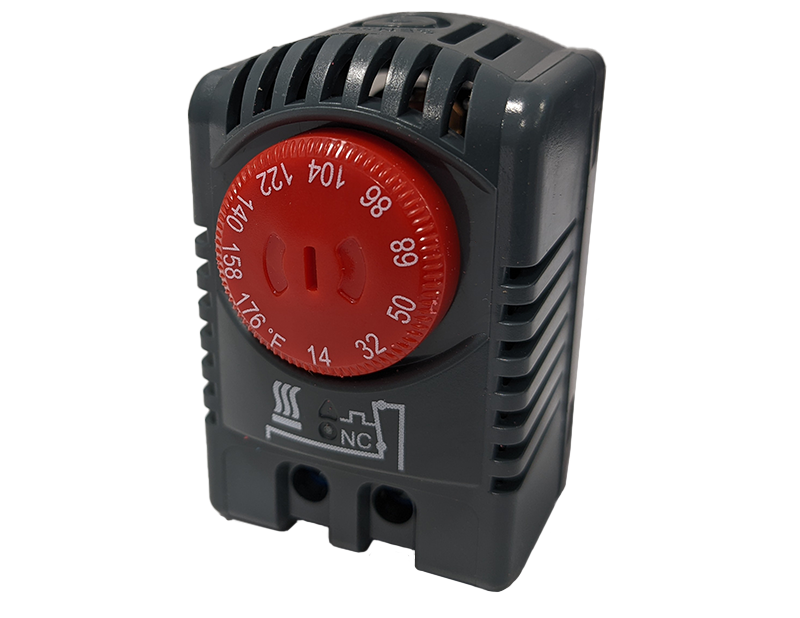

SCE-TEMNC | NEMA IS24 | Thermostat (Normally Closed), 2H x 1W x 1D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-TEMNC
Overview Details for SCE-TEMNC
Application
Designed to regulate air temperature in enclosures that operate with heaters or fans. This mechanical bi-metallic thermostat has a set point range of 30° to 140° F and is easily installed on 35mm mounting rail. (NC) contact normally closed, or (NO) contact normally open, switch capacity 10 amp 120-250 VAC Resistive load and 1 amp 120-250VAC Inductive load, 1.25 amp 24VDC.
Industry Standards - (IS24)
- UL Component Recognized
Notes
UL File # E358385
Specifications
Item Number | SCE-TEMNC |
Brand | Saginaw |
Enclosure Depth (IN) | 1 |
Enclosure Height (IN) | 2 |
Enclosure Type | Thermostat (Normally Closed) |
Enclosure Width (IN) | 1 |
IS21 Enclosure Rating | NEMA 4 |
