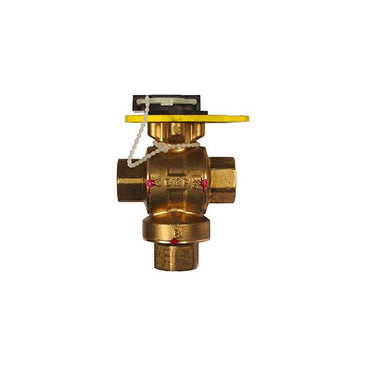

VFB-4608BBC | Valve: 2" 3W NPT, 38.2Cv, Quick Mount | KMC
Valve: 2" 3W NPT, 38.2Cv, Quick Mount
Documents and manuals
Overview
Details for VFB-4608BBC
Valve: 2" 3W NPT, 38.2Cv, Quick Mount
VFB-46 series, three-way, NPT, ball valve bodies are designed for the control of hot or chilled water in HVAC applications. Valve bodies range in size from 1/2 to 3 inches and feature an optimizing insert (except for indicated models), which reduces the Cv and characterizes the ball opening for equal percentage flow characteristics. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators.
Order VFB-46 series valve bodies and tri-state or two-way MEP-4xxxV actuators separately. See the actuator chart in the VEB/VFB-43 series data sheet. See also the MEP-4000/4800 series and MEP-4200/4500/4900 series data sheets for more actuator information.
For complete valve assemblies (with proportional actuators) instead, see the VEB-46 series valves.
Specifications
- Brand
KMC Controls
- CV
38.2
- Mounting
Quickmount
- Selection Guide
Valve Body-Only
- Valve Connection
Female NPT
- Valve Piping Style
3W
- Valve Size
2
- Valve Type
Ball
