VEZ-4403AMBP | Zone Valve | 0.75" - 3 Way | 4.1 Cv | Spring Return | 120V | On/Off | KMC

Zone Valve | 0.75" - 3 Way | 4.1 Cv | Spring Return | 120V | On/Off

KMC | VEZ-4403AMBP

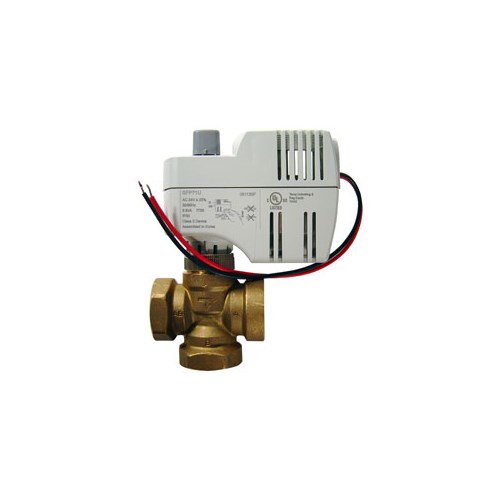

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VEZ-4403AMBP

Overview

Details for VEZ-4403AMBP

Zone Valve | 0.75" - 3 Way | 4.1 Cv | Spring Return | 120V | On/Off

These three-way, diverting, globe zone valves are available in 1/2″ through 1″ line sizes. They are designed to regulate hot or chilled water in VAV terminal unit reheat coils, fan coil units, and induction units. For limited pressures, the valves can also be used in mixing applications. The compact size allows easy installation in small enclosures.The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.Features include:

  • Choice of tri-state/floating or proportional fail-in-place or two-position spring-return fail-safe
  • Compact size
  • Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
  • Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed

Specifications

Actuator Type

Electric

Brand

KMC Controls

CV

4.1

Control Input

120 VAC

Fail-Safe

Yes

Fail-Safe Type

Spring

Input Types

Two-position

Normality (Fail)

AB-A

Power Supply

120 VAC

Selection Guide

Valve And Actuator

Timing (sec)

35

Valve Connection

Female NPT

Valve Piping Style

3W

Valve Size

3/4

Valve Type

Zone
