Details for VEZ-4403AMBF

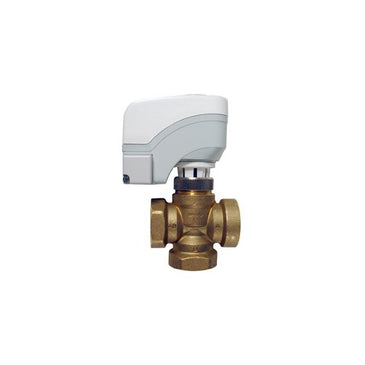

Zone Valve | 0.75" - 3 Way | 4.1 Cv | Non-Spring Return | 24V | Floating
These three-way, diverting, globe zone valves are available in 1/2″ through 1″ line sizes. They are designed to regulate hot or chilled water in VAV terminal unit reheat coils, fan coil units, and induction units. For limited pressures, the valves can also be used in mixing applications. The compact size allows easy installation in small enclosures.The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.Features include:
- Choice of tri-state/floating or proportional fail-in-place or two-position spring-return fail-safe
- Compact size
- Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
- Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- CV
4.1
- Control Input
24 VAC
- Input Types
Tri-state
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC
- Selection Guide
Valve And Actuator
- Timing (sec)
150
- Valve Connection
Female NPT
- Valve Piping Style
3W
- Valve Size
3/4
- Valve Type
Zone
