VEZ-4103AMBM | Zone Valve | 0.75" - 2 Way | 4.1 Cv | Spring Return NO | 24V | On/Off | KMC

Zone Valve | 0.75" - 2 Way | 4.1 Cv | Spring Return NO | 24V | On/Off

KMC | VEZ-4103AMBM

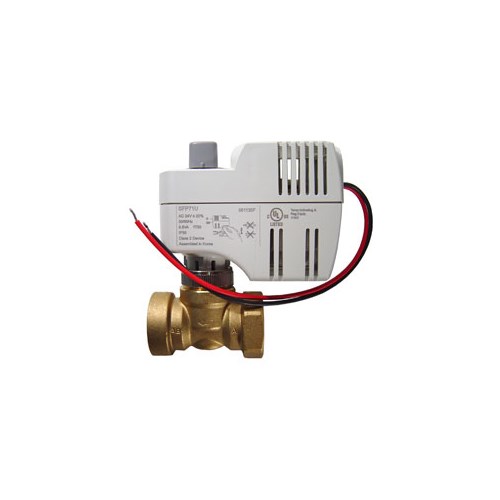

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VEZ-4103AMBM

Overview

Details for VEZ-4103AMBM

Zone Valve | 0.75" - 2 Way | 4.1 Cv | Spring Return NO | 24V | On/Off

These globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, and induction units. The compact design of these units allows easy installation within small enclosures.Valve bodies, available in 1/2 to 1″ line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.Features include:

  • Choice of tri-state/floating or proportional fail-in-place or two-position (NO or NC) spring-return fail-safe
  • Compact size
  • Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
  • Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed

Specifications

Actuator Type

Electric

Brand

KMC Controls

CV

4.1

Control Input

24 VAC

Fail-Safe

Yes

Fail-Safe Type

Spring

Input Types

Two-position

Normality (Fail)

NO

Power Supply

24 VAC

Selection Guide

Valve And Actuator

Timing (sec)

35

Valve Connection

Female NPT

Valve Piping Style

2W

Valve Size

3/4

Valve Type

Zone
