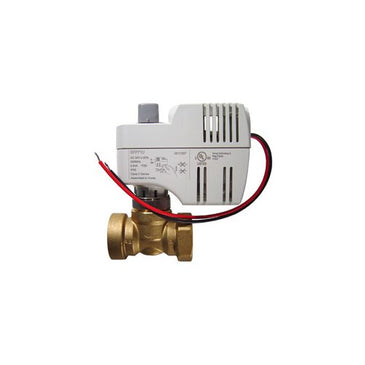

Zone Valve | 0.5" - 2 Way | 2.5 Cv | Spring Return NO | 120V | On/Off
These globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, and induction units. The compact design of these units allows easy installation within small enclosures.Valve bodies, available in 1/2 to 1″ line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.Features include:
- Choice of tri-state/floating or proportional fail-in-place or two-position (NO or NC) spring-return fail-safe
- Compact size
- Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
- Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- CV
2.5
- Control Input
120 VAC
- Fail-Safe
Yes
- Fail-Safe Type
Spring
- Input Types
Two-position
- Normality (Fail)
NO
- Power Supply
120 VAC
- Selection Guide
Valve And Actuator
- Timing (sec)
35
- Valve Connection
Female NPT
- Valve Piping Style
2W
- Valve Size
1/2
- Valve Type
Zone
