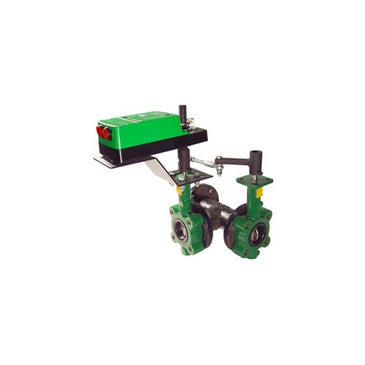

VEF-5616ARHK | Butterfly Valve | 4" - 3 Way | 600 Cv | Non-Spring Return | 24V | Modulating | KMC

Butterfly Valve | 4" - 3 Way | 600 Cv | Non-Spring Return | 24V | Modulating

The electronic KMC VEF-56 series control butterfly valves are three-way, mixing or diverting valves for control of flow in high-capacity hot or chilled water applications. Valves range in size from 2″ to 5″ with modified equal percentage flow characteristics. The lug-style valves feature a stainless-steel disk and shaft with an EPDM seat to assure long life and bubble-tight shut off.

These valves use KMC MEP-7000 series ControlSet tri-state or proportional actuators. An optional fail-safe feature allows failure to either position upon loss of 24 VAC supply—the capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction. The MEP-7xx2 proportional (2–10 VDC or 4–20 mA) models feature a switch-selectable, 1–5 or 2–10 VDC voltage feedback output that is proportional to the actuator position. A gear disengagement feature allows positioning of the valve stem/disk without energizing the actuator.

For equivalent two-way valves, see the VEF-53 series.
