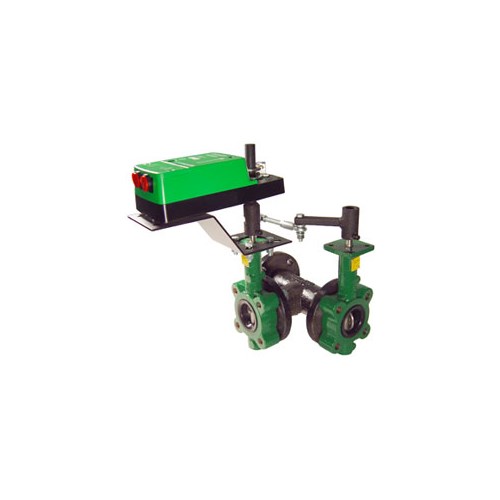

VEF-5616ARHH | Butterfly Valve | 4" - 3 Way | 600 Cv | Electronic Fail-Safe | 24V | Floating | KMC

Butterfly Valve | 4" - 3 Way | 600 Cv | Electronic Fail-Safe | 24V | Floating

KMC | VEF-5616ARHH
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VEF-5616ARHH

Overview

Details for VEF-5616ARHH

Butterfly Valve | 4" - 3 Way | 600 Cv | Electronic Fail-Safe | 24V | Floating

The electronic KMC VEF-56 series control butterfly valves are three-way, mixing or diverting valves for control of flow in high-capacity hot or chilled water applications. Valves range in size from 2″ to 5″ with modified equal percentage flow characteristics. The lug-style valves feature a stainless-steel disk and shaft with an EPDM seat to assure long life and bubble-tight shut off.

These valves use KMC MEP-7000 series ControlSet tri-state or proportional actuators. An optional fail-safe feature allows failure to either position upon loss of 24 VAC supply—the capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction. The MEP-7xx2 proportional (2–10 VDC or 4–20 mA) models feature a switch-selectable, 1–5 or 2–10 VDC voltage feedback output that is proportional to the actuator position. A gear disengagement feature allows positioning of the valve stem/disk without energizing the actuator.

For equivalent two-way valves, see the VEF-53 series.

Specifications

Actuator Type

Electric

Auxilary Switch

Accessory

Brand

KMC Controls

CV

600

Control Input

24 VAC, 24 VDC

Fail-Safe

Yes

Fail-Safe Type

Electronic

Input Types

Tri-state, Two-position

Normality (Fail)

Selectable

Power Supply

24 VAC, 24 VDC

Selection Guide

Valve And Actuator

Timing (sec)

90

Torque

320 in-lb

Valve Connection

Flanged, Rbr Seat

Valve Piping Style

3W

Valve Size

4

Valve Type

Butterfly
