VEF-5608ARFK | Butterfly Valve | 2" - 3 Way | 115 Cv | Non-Spring Return | 24V | Modulating | KMC
Butterfly Valve | 2" - 3 Way | 115 Cv | Non-Spring Return | 24V | Modulating
Documents and manuals
Overview
Details for VEF-5608ARFK
Butterfly Valve | 2" - 3 Way | 115 Cv | Non-Spring Return | 24V | Modulating

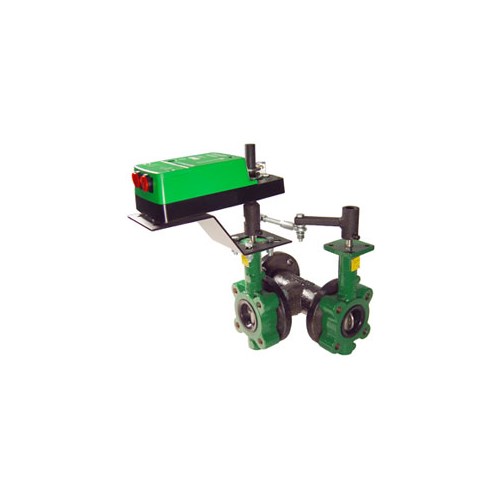

The electronic KMC VEF-56 series control butterfly valves are three-way, mixing or diverting valves for control of flow in high-capacity hot or chilled water applications. Valves range in size from 2″ to 5″ with modified equal percentage flow characteristics. The lug-style valves feature a stainless-steel disk and shaft with an EPDM seat to assure long life and bubble-tight shut off.
These valves use KMC MEP-7000 series ControlSet tri-state or proportional actuators. An optional fail-safe feature allows failure to either position upon loss of 24 VAC supply—the capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction. The MEP-7xx2 proportional (2–10 VDC or 4–20 mA) models feature a switch-selectable, 1–5 or 2–10 VDC voltage feedback output that is proportional to the actuator position. A gear disengagement feature allows positioning of the valve stem/disk without energizing the actuator.
For equivalent two-way valves, see the VEF-53 series.
Specifications
- Actuator Type
Electric
- Auxilary Switch
Accessory
- Brand
KMC Controls
- CV
115
- Control Input
0-10 VDC, 2-10 VDC, 4-20 mA
- Fail-Safe
No
- Feedback
Voltage
- Input Types
Proportional
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Valve And Actuator
- Timing (sec)
90
- Torque
320 in-lb
- Valve Connection
Flanged, Rbr Seat
- Valve Piping Style
3W
- Valve Size
2
- Valve Type
Butterfly
