VEF-5320ARJF | Butterfly Valve | 5" - 2 Way | 1022 Cv | Electronic Fail-Safe | 24V | Floating | KMC

Butterfly Valve | 5" - 2 Way | 1022 Cv | Electronic Fail-Safe | 24V | Floating

Brand: KMCSKU: VEF-5320ARJF
KMC | VEF-5320ARJF

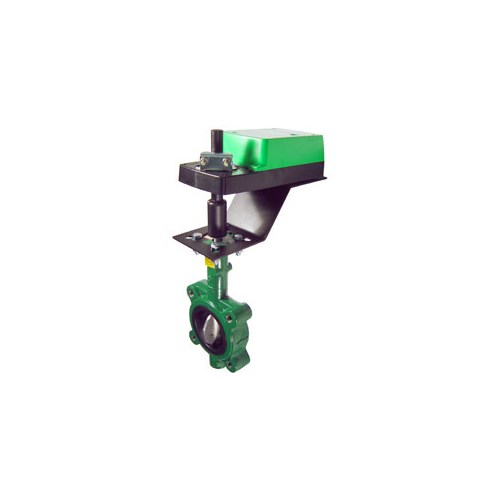

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VEF-5320ARJF

Overview Details for VEF-5320ARJF

Butterfly Valve | 5" - 2 Way | 1022 Cv | Electronic Fail-Safe | 24V | Floating

The electronic KMC VEF-53 series butterfly valves are two-way valves for control of straight-through flow in high-capacity hot or chilled water applications. Valves range in size from 2″ to 6″ with modified equal percentage flow characteristics. The lug-style valves feature a stainless-steel disk and shaft with an EPDM seat to assure long life and bubble-tight shut off.

These valves use KMC MEP-7000 series ControlSet tri-state or proportional actuators. An optional fail-safe feature allows failure to either open or closed positions upon loss of 24 VAC supply—the capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction. The MEP-7xx2 proportional (2–10 VDC or 4–20 mA) models feature a switch-selectable, 1–5 or 2–10 VDC voltage feedback output that is proportional to the actuator position. A gear disengagement feature allows positioning of the valve stem/disk without energizing the actuator.

For equivalent three-way valves, see the VEF-56 Series.

Specifications

Actuator Type

Electric

Auxilary Switch

Accessory

Brand

KMC Controls

CV

1022

Control Input

24 VAC, 24 VDC

Fail-Safe

No

Input Types

Tri-state

Normality (Fail)

Fail In Place

Power Supply

24 VAC, 24 VDC

Selection Guide

Valve And Actuator

Timing (sec)

90

Torque

320 in-lb

Valve Connection

Flanged, Rbr Seat

Valve Piping Style

2W

Valve Size

5

Valve Type

Butterfly
