VEF-5310ARFH | Butterfly Valve | 2.5" - 2 Way | 196 Cv | Electronic Fail-Safe | 24V | Floating | KMC
Butterfly Valve | 2.5" - 2 Way | 196 Cv | Electronic Fail-Safe | 24V | Floating
Documents and manuals
Overview
Details for VEF-5310ARFH
Butterfly Valve | 2.5" - 2 Way | 196 Cv | Electronic Fail-Safe | 24V | Floating

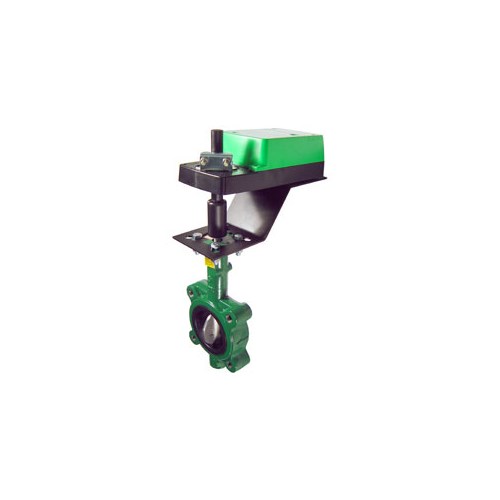

The electronic KMC VEF-53 series butterfly valves are two-way valves for control of straight-through flow in high-capacity hot or chilled water applications. Valves range in size from 2″ to 6″ with modified equal percentage flow characteristics. The lug-style valves feature a stainless-steel disk and shaft with an EPDM seat to assure long life and bubble-tight shut off.
These valves use KMC MEP-7000 series ControlSet tri-state or proportional actuators. An optional fail-safe feature allows failure to either open or closed positions upon loss of 24 VAC supply—the capacitor-driven fail-safe models provide efficient operation with switch-selectable fail direction. The MEP-7xx2 proportional (2–10 VDC or 4–20 mA) models feature a switch-selectable, 1–5 or 2–10 VDC voltage feedback output that is proportional to the actuator position. A gear disengagement feature allows positioning of the valve stem/disk without energizing the actuator.
For equivalent three-way valves, see the VEF-56 Series.
Specifications
- Actuator Type
Electric
- Auxilary Switch
Accessory
- Brand
KMC Controls
- CV
196
- Control Input
24 VAC, 24 VDC
- Fail-Safe
Yes
- Fail-Safe Type
Electronic
- Input Types
Tri-state, Two-position
- Normality (Fail)
Selectable
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Valve And Actuator
- Timing (sec)
90
- Torque
180 in-lb
- Valve Connection
Flanged, Rbr Seat
- Valve Piping Style
2W
- Valve Size
2-1/2
- Valve Type
Butterfly
