VEB-5616FSFL | CCV | 4" - 3 Way | 327 Cv | Electronic Fail-Safe | 24V | Modulating | KMC
CCV | 4" - 3 Way | 327 Cv | Electronic Fail-Safe | 24V | Modulating
Documents and manuals
Overview
Details for VEB-5616FSFL
CCV | 4" - 3 Way | 327 Cv | Electronic Fail-Safe | 24V | Modulating

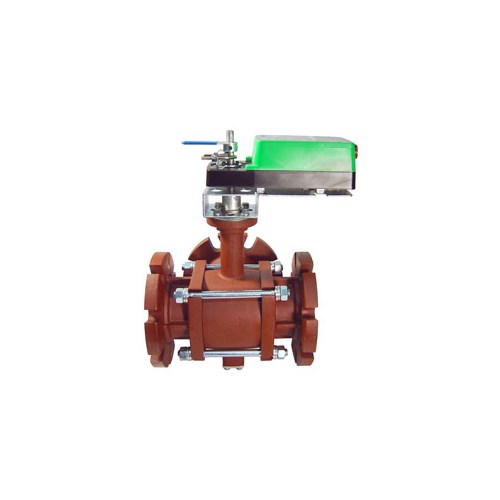

The KMC VEB-56 series ball control valves are three-way, mixing or diverting, flanged valves, designed for control of hot water or chilled water. These valves range in size from 4 to 6 inches with equal-percentage flow characteristics. Leak-proof, blow-out-proof stems, and stainless steel ball and stem make these valves ideal for many applications.
These valves use KMC MEP-7500 series ControlSet actuators with proportional or tri-state inputs. Proportional models accept a 0–10 VDC, 2–10 VDC, or 4–20 mA control signal input from a thermostat, controller, or building automation system. A user-initiated, auto-mapping feature provides better equipment control by reassigning the input signal range over the desired reduced rotation range (from 45 to 95°). Plus, they feature a feedback voltage output that is proportional to the actuator position. Tri-state models are designed for use with floating thermostats, controllers, or building automation systems. An optional, long-life, capacitor-driven “fail-safe” feature allows simple switch-selectable fail direction in either direction upon power loss. Optional auxiliary switches are available for remote position indication or controller and equipment interface. A gear disengagement button allows positioning of the valve stem/plug without energizing the actuator.
See also the VEB-53 series two-way valves.
Specifications
- Actuator Type
Electric
- Auxilary Switch
Accessory
- Brand
KMC Controls
- CV
327
- Control Input
0-10 VDC, 2-10 VDC, 4-20 mA
- Fail-Safe
Yes
- Fail-Safe Type
Electronic
- Feedback
Voltage
- Input Types
Proportional
- Normality (Fail)
Selectable
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Valve And Actuator
- Timing (sec)
30
- Torque
180 in-lb
- Valve Connection
Flanged
- Valve Piping Style
3W
- Valve Size
4
- Valve Type
Ball
