Details for VEB-5324DSGK
CCV | 6" - 2 Way | 441 Cv | Non-Spring Return | 24V | Modulating

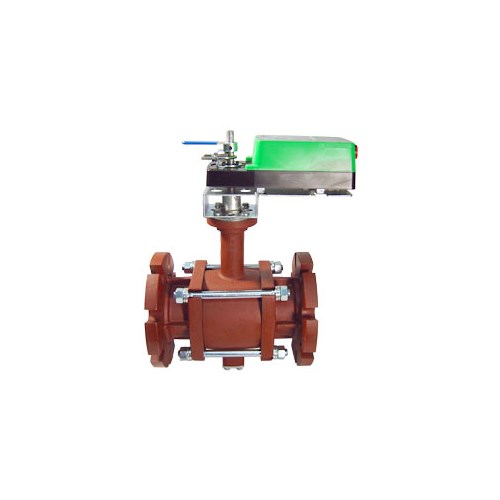

KMC VEB-53 series control ball valves are two-way flanged valves, designed for control of hot or chilled water. These valves range in size from 4 to 6 inches with equal-percentage flow characteristics. Leak-proof, blow-out-proof stems, and stainless steel ball and stem make these valves ideal for many applications.
These valves use KMC MEP-75xx ControlSet actuators with proportional or tri-state inputs. Proportional models accept a 0–10 VDC, 2–10 VDC, or 4–20 mA control signal input from a thermostat, controller, or building automation system. A user-initiated, automapping feature provides better equipment control by reassigning the input signal range over the desired reduced rotation range (from 45 to 95?). Plus, they feature a feedback voltage output that is proportional to the actuator position. Tri-state models are designed for use with floating thermostats, controllers, or building automation systems.
An optional, long-life, capacitor-driven fail-safe feature allows simple switch-selectable fail direction in either direction upon power loss. Optional auxiliary switches are available for remote position indication or controller and equipment interface. A gear disengagement button allows positioning of the valve stem/plug without energizing the actuator.
See also VEB-56 series three-way valves.
Specifications
- Actuator Type
Electric
- Auxilary Switch
Accessory
- Brand
KMC Controls
- CV
441
- Control Input
0-10 VDC, 2-10 VDC, 4-20 mA
- Fail-Safe
No
- Feedback
Voltage
- Input Types
Proportional
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Valve And Actuator
- Timing (sec)
90
- Torque
180 in-lb
- Valve Connection
Flanged
- Valve Piping Style
2W
- Valve Size
6
- Valve Type
Ball
