VEB-4612FBCK | CCV | 3" - 3 Way | 200 Cv | Non-Spring Return | 24V | Modulating | KMC

CCV | 3" - 3 Way | 200 Cv | Non-Spring Return | 24V | Modulating

VEB-46 (formerly VEP-43) series, 3-way, mixing or diverting, NPT control ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and most feature an optimizing insert, which reduces and characterizes the ball opening for lower Cv ratings similar to globe valves.

The body design also provides a standard “T” pattern to simplify installation. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators and are designed to work with KMC’s low-torque, MEP-4xxxV series actuators on all valve sizes.

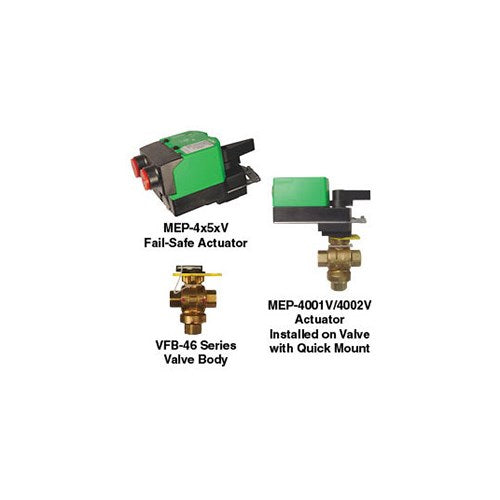

Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately.

See also the MEP-4000/4800 and MEP-4200/4500/4900 series for more information about the actuators. For equivalent two-way valves, see the VEB-43 series.
