VEB-4606EBCL | CCV | 1.5" - 3 Way | 23.5 Cv | Electronic Fail-Safe | 24V | Modulating | KMC
CCV | 1.5" - 3 Way | 23.5 Cv | Electronic Fail-Safe | 24V | Modulating
Documents and manuals
Overview
Details for VEB-4606EBCL
CCV | 1.5" - 3 Way | 23.5 Cv | Electronic Fail-Safe | 24V | Modulating

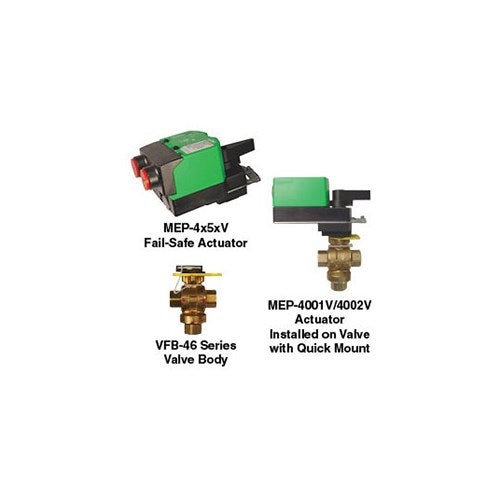

VEB-46 (formerly VEP-43) series, 3-way, mixing or diverting, NPT control ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and most feature an optimizing insert, which reduces and characterizes the ball opening for lower Cv ratings similar to globe valves.
The body design also provides a standard “T” pattern to simplify installation. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators and are designed to work with KMC’s low-torque, MEP-4xxxV series actuators on all valve sizes.
Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately.
See also the MEP-4000/4800 and MEP-4200/4500/4900 series for more information about the actuators. For equivalent two-way valves, see the VEB-43 series.
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- CV
28.4
- Control Input
0-10 VDC, 2-10 VDC
- Fail-Safe
Yes
- Fail-Safe Type
Electronic
- Feedback
Voltage
- Input Types
Proportional
- Normality (Fail)
Selectable
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Valve And Actuator
- Timing (sec)
30
- Torque
45 in-lb
- Valve Connection
Female NPT
- Valve Piping Style
3W
- Valve Size
1-1/2
- Valve Type
Ball
