VEB-4312CBCK | CCV | 3" - 2 Way | 82 Cv | Non-Spring Return | 24V | Modulating | KMC
CCV | 3" - 2 Way | 82 Cv | Non-Spring Return | 24V | Modulating
Documents and manuals
Overview
Details for VEB-4312CBCK
CCV | 3" - 2 Way | 82 Cv | Non-Spring Return | 24V | Modulating

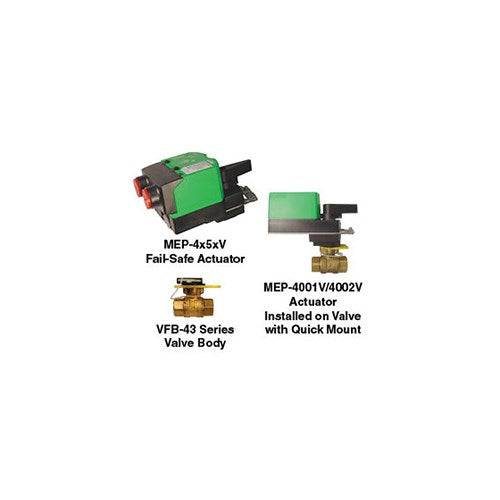

VEB-43 series, two-way, NPT, ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and feature an optimizing insert (except for indicated models), which reduces the Cv and characterizes the ball opening for equal percentage flow characteristics. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators. KMC’s low-torque MEP-4xxxV actuators work on all valve sizes.
Valve assemblies have brackets with a patent-pending, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately. See the MEP-4000/4800 Series and MEP-4200/4500/4900 Series data sheets for more actuator information.
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- CV
82
- Control Input
0-10 VDC, 2-10 VDC
- Fail-Safe
No
- Feedback
Voltage
- Input Types
Proportional
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC
- Selection Guide
Valve And Actuator
- Timing (sec)
90
- Torque
40 in-lb
- Valve Connection
Female NPT
- Valve Piping Style
2W
- Valve Size
3
- Valve Type
Ball
