VEB-4302HBCK | CCV | 0.5" - 2 Way | 2.6 Cv | Non-Spring Return | 24V | Modulating | KMC

CCV | 0.5" - 2 Way | 2.6 Cv | Non-Spring Return | 24V | Modulating

VEB-43 series, two-way, NPT, ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and feature an optimizing insert (except for indicated models), which reduces the Cv and characterizes the ball opening for equal percentage flow characteristics. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators. KMC’s low-torque MEP-4xxxV actuators work on all valve sizes.

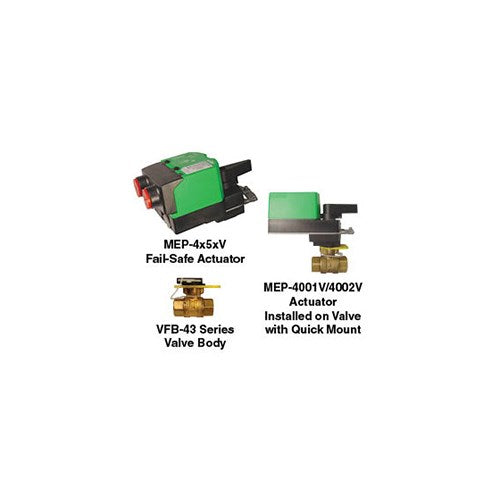

Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately.

See also the MEP-4000/4800 and MEP-4200/4500/4900 series for more information about the actuators. For 3-way equivalents, see the VEB-46 series.
