VCZ-4402CMBE | Valve; 1/2" 3 Way, NPT, Diverting; 4.0 Cv; 8-13 PSI; Fail AB - A | KMC

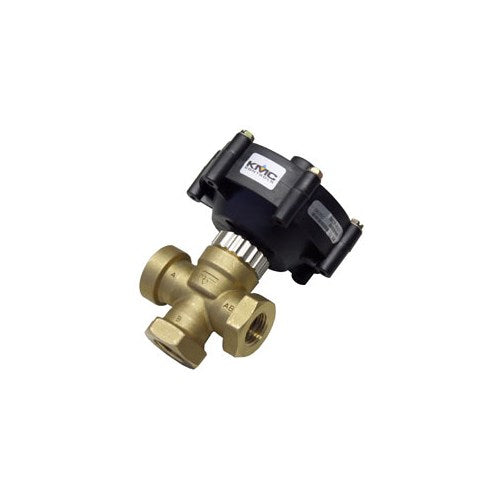

Valve; 1/2" 3 Way, NPT, Diverting; 4.0 Cv; 8-13 PSI; Fail AB - A
Documents and manuals
Overview
Details for VCZ-4402CMBE
Valve; 1/2" 3 Way, NPT, Diverting; 4.0 Cv; 8-13 PSI; Fail AB - A
These pneumatic globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, induction units, finned tube convectors, and cast iron radiators. The compact design of these units allows easy installation within small enclosures.The rugged, precision pneumatic actuators have a glass-filled nylon housing and a neoprene diaphragm. Replacement actuators can be installed on the valve bodies without tools.Features Include: • Compact size, ideal for small enclosures • Actuator field-replaceable without tools • Choice of 3–8 or 8–13 psi actuators • Two-way or three-way valve bodies, with multiple sizes and Cvs
Specifications
- Actuator Type
Pneumatic
- Brand
KMC Controls
- CV
4
- Fail-Safe
Yes
- Normality (Fail)
AB-A
- PSI Range
8-13 PSI
- Selection Guide
Valve And Actuator
- Valve Connection
Female NPT
- Valve Piping Style
3W
- Valve Size
1/2
- Valve Type
Zone
