Sensor: Gauge Pressure Transmitter (0-50, 100, 250, 500 psi)

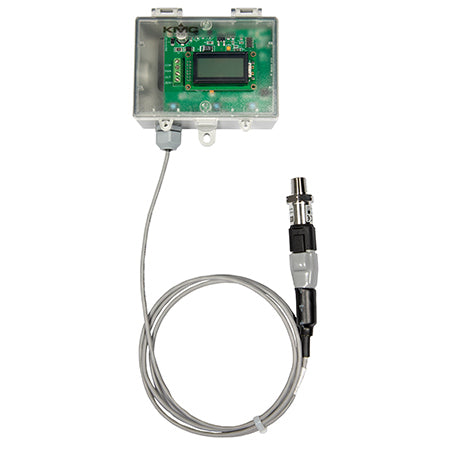

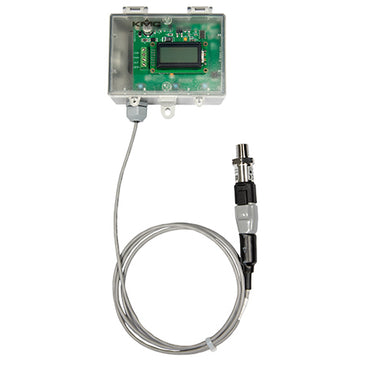

The KMC TPE-1464 series of pressure transducers incorporate a gauge pressure transmitter with a single remote sensor. They incorporate a rugged NEMA 4X and IP65 hinged and gasketed enclosure and a five-foot (1.5 m) cable for the remote sensor.

They may be used with any liquid or gas that is compatible with 17–4 pH stainless steel.

Each model has four field-selectable input pressure ranges available (see the Models section below). The inputs are rated for an overload pressure of two times the maximum full scale range and a burst pressure of twenty times the maximum full-scale range.

Three output ranges are field-selectable (4 to 20 mA, 0 to 5 VDC, and 0 to 10 VDC), with optional output reversal and slow-damping for the most flexible application use. The output signal is factory-calibrated and temperature-compensated for the highest start-up accuracy.

The transducers are powered from a 24 VAC/VDC (non-isolated half-wave rectified) power source.

NOTE: This information is for transmitters available starting in July 2019. For earlier (2008–2019) device (all-grey enclosure with no display) specifications, see Rev. F of the data sheet.
