STE-9321W | NetSensor: Temperature, Humidity, CO2, White | KMC

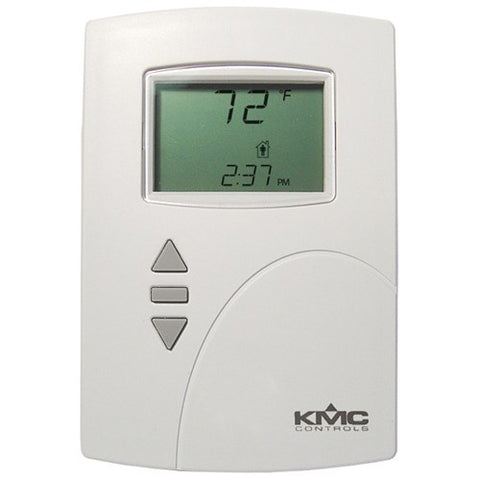

NetSensor: Temperature, Humidity, CO2, White
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STE-9321W
Documents and manuals
KMC STE-9321W Documents
APPLICATION GUIDE. KMC CONQUEST CONTROLLERDATA SHEET. Conquest NetSensors STE-9000 Series Digital Room SensorsINSTALLATION GUIDE. Conquest STE-9000 Series NetSensorsQUICK REFERENCE GUIDE. STE-9000 Series Digital Room SensorsKMC Master Cross-ReferenceSELECTION GUIDE for KMC Conquest Controllers. Sensors. and AccessoriesWHITE PAPER. DCV Benefits for Your Building More Info
Overview
Details for STE-9321W
NetSensor: Temperature, Humidity, CO2, White
KMC Conquest STE-9000 series NetSensors are wall-mounted digital space temperature sensors designed for use with KMC Conquest BAC-5900/9000/9300 series controllers. Key features include the following:
- Up to four sensors in a single package minimizes labor, wiring, and wall space, while optional humidity, motion, and CO2 sensors allow expanded energy-efficient control of humidity, temperature setback, lighting, and ventilation.
- A user-friendly three-button integrated operator interface provides occupant viewing and adjusting, and the LCD display is user-configurable to show parameters such as temperature, setpoint, system status, and time.
- The upper (default) LCD display shows room temperature and setpoints. A lower (default) display shows local time and can be enabled to show (dependent on sensors and controller configuration) % relative humidity, CO2 ppm, and outside air temperature (°F or °C) in rotation. Both displays can be configured to show any controller default or calculated analog or binary values (such as airflow or energy consumption), and multiple values can show in rotation.
- It allows up to two separate passwords for adjusting setpoints and configuring/commissioning/balancing.
- It connects to a controller via a modular jack connection using standard Ethernet patch cables.
- It installs permanently as a room sensor or temporarily as a service tool; as a service tool, it commissions controllers without software, configures communication and application settings, and balances VAV air flow.
- It supports single or dual setpoints (see the Single Setpoint for STE-9xxx NetSensor Application Guide for details on the process of configuring a single occupied setpoint).
- An HPO-9001 NetSensor distribution module allows up to eight STE-9000 series NetSensors to be linked to one controller or allows one STE-6010/6014/6017 analog temperature sensor to be connected with up to seven NetSensors.
Specifications
- Brand
KMC Controls
- Color
White
- Sensor Type
CO2, Humidity, Temperature
