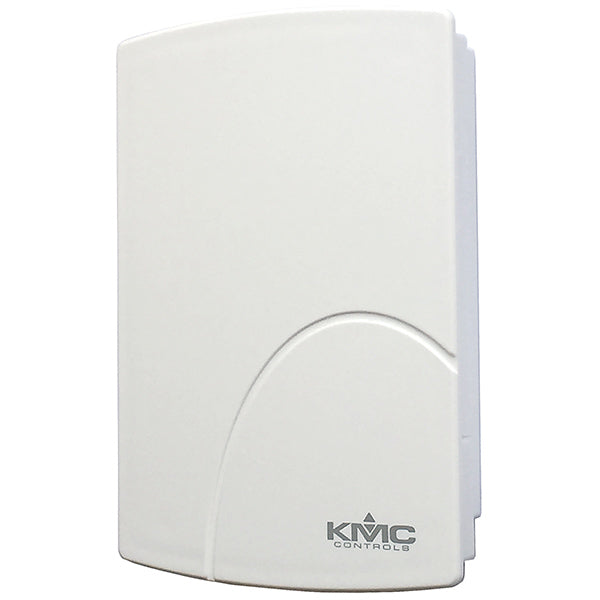

STE-9301W-NDL | NetSensor: Temperature, CO2, White, No Display | KMC

NetSensor: Temperature, CO2, White, No Display

KMC Conquest STE-9000 series NetSensors are wall-mounted digital space temperature sensors designed for use with KMC Conquest BAC-5900/9000/9300 series controllers. Key features include the following:

• Up to four sensors in a single package minimizes labor, wiring, and wall space, while optional humidity, motion, and CO2 sensors allow expanded energy-efficient control of humidity, temperature setback, lighting, and ventilation.
• A user-friendly three-button integrated operator interface (on models without the NDL suffix) provides occupant viewing and adjusting, and the LCD display (on models without the NDL suffix) is user-configurable to show parameters such as temperature, setpoint, system status, and time.
• The upper (default) LCD display shows room temperature and setpoints. A lower (default) display shows local time and can be enabled to show (dependent on sensors and controller configuration) % relative humidity, CO2 ppm, and outside air temperature (°F or °C) in rotation. Both displays can be configured to show any controller default or calculated analog or binary values (such as airflow or energy consumption), and multiple values can show in rotation.
• It allows up to two separate passwords (on models without the NDL suffix) for adjusting setpoints and configuring/commissioning/balancing.
• It connects to a controller via a modular jack connection using standard Ethernet patch cables.
• It installs permanently as a room sensor or temporarily as a service tool (for models without the NDL suffix); as a service tool, it commissions controllers without software, configures communication and application settings, and balances VAV air flow.
• It supports single or dual setpoints (see the Single Setpoint for STE-9xxx NetSensor Application Guide for details on the process of configuring a single occupied setpoint).
• An HPO-9001 NetSensor distribution module allows up to eight STE-9000 series NetSensors to be linked to one controller or allows one STE-6010/6014/6017 analog temperature sensor to be connected with up to seven NetSensors.
