Overview
Details for STE-6012W10

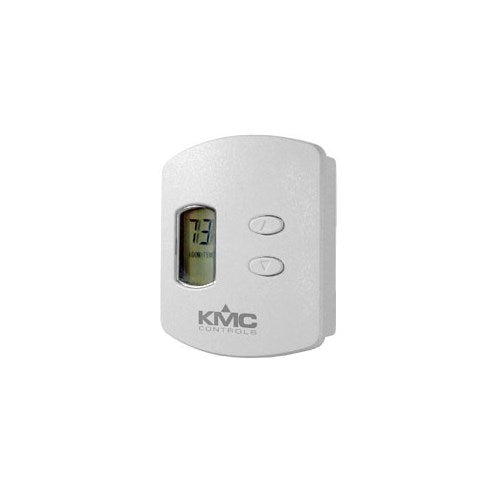

Sensor: Room Temp, Setpoint, LCD, White
These compact, stylish, and economical room temperature sensors/transmitters are designed for use with KMC digital controllers. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing. The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.
STE-6012 model transmitters include an LCD display for the room temperature and setpoint. The temperature display can be toggled between Fahrenheit and Celsius scales. The setpoint is adjustable via the up and down arrow buttons on the front panel. If the system is in normal/override mode, pressing a button will raise or lower the setpoint. When either button is pushed, the display will toggle from room temperature to the setpoint. When the button is released, the number displayed is the new setpoint, and the display will return to room temperature after ten seconds. If the system is in setback/setup (for heating/cooling) mode, pressing either button selects override mode. (See Power Requirements in the Specifications section of the data sheet.)
Specifications
- Brand
KMC Controls
- Color
White
- Sensor Type
Temperature
