REE-3105 | Relay: DPTP, Multi-Voltage, 10A, Single | KMC
Relay: DPTP, Multi-Voltage, 10A, Single
Documents and manuals
KMC REE-3105 Documents
Overview
Details for REE-3105
Relay: DPTP, Multi-Voltage, 10A, Single

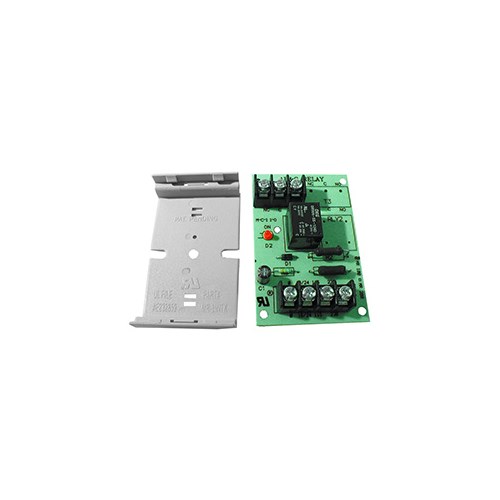

The KMC REE-3100 series relays are ideal for applications where local or remote contacts are required for system status, control of electrical loads and general all-purpose switching. They are suitable for use in systems such as HVAC, fire, security, and lighting control.
These devices offer SPDT or DPDT (Form “C”) 10 A contacts, which may be operated by one of four input control voltages. A single relay may be energized from a voltage source of 24 VDC/VAC, 115 VAC, or 230 VAC by wiring to the appropriate input terminals.
Each relay module has a red LED to visually indicate when the relay coil is energized. The relays are rated at 10,000,000 mechanical operations.
Specifications
Item Number | REE-3105 |
Brand | KMC |
Brand | KMC Controls |
