MEP-425300 | Damper Actuator | 62 in-lb | Spring Return | 120V | On/Off | KMC
Damper Actuator | 62 in-lb | Spring Return | 120V | On/Off
Documents and manuals
Overview
Details for MEP-425300
Damper Actuator | 62 in-lb | Spring Return | 120V | On/Off

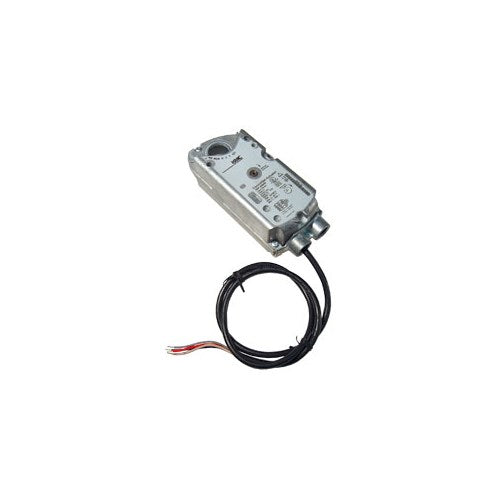

KMC MEP-425 series direct-coupled, spring-return actuators are designed to control small- and medium-sized dampers requiring fail-safe operation.
The MEP-425 Series actuators mount to 1/4″ to 3/4″ diameter shafts or 1/4″ to 1/2″ square shafts. The actuators produce 62 in-lbs. of torque, running and spring return minimum, over a maximum 95? rotation. (For higher torque requirements, see the MEP-455 series.)
Two-position, tri-state, and 0 to 10 VDC models are available with pre-cabled wiring and integrated conduit adapter.
For equivalent actuators that offer the many advantages of capacitor-driven fail-safe return, see the MEP-4200/4500/4900 series.
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- Control Input
120 VAC
- Fail-Safe
Yes
- Fail-Safe Type
Spring
- Input Types
Two-position
- Mounting
Shaft Coupling and Bracket
- Normality (Fail)
Selectable
- Power Supply
120 VAC
- Selection Guide
Actuator-Only
- Timing (sec)
90
- Torque
62 in-lb
