MEP-4201 | Damper Actuator | 25 in-lb | Non-Spring Return | 24V | Floating | KMC
Damper Actuator | 25 in-lb | Non-Spring Return | 24V | Floating
Documents and manuals
Overview
Details for MEP-4201
Damper Actuator | 25 in-lb | Non-Spring Return | 24V | Floating

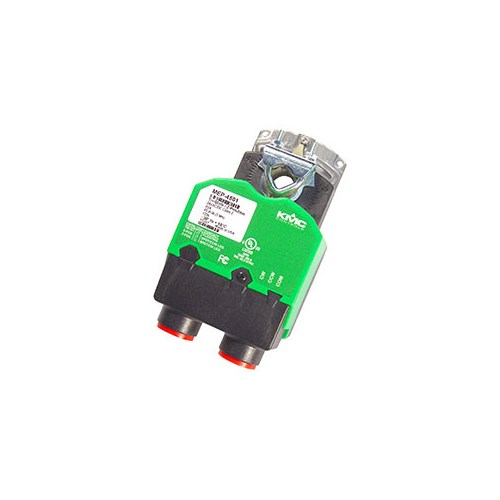

These compact but powerful direct-coupled ControlSet? actuators provide fast and accurate tri-state floating or two-position control for dampers or valves in HVAC systems. A minimum torque of 25 (MEP-4201), 45 (MEP-4501), or 90 (MEP-4901) in-lb. is available over the 95? angular rotation in 35 seconds or less (or 45 seconds for the MEP-4901).
These non-fail-safe models are designed for use with floating thermostats or controllers or for two-position control (dependent on wiring and switch configuration). A patented noise reducer provides whisper-quiet operation.
All actuators mount directly to 1/4- to 5/8-inch (6 to 16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm) square shafts, eliminating the need for expensive and complicated linkages. A non-rotation bracket, to prevent lateral movement, is included with each actuator. A gear disengagement button allows easy manual positioning of the actuator.
(For similar actuators with fail-safe, see the MEP-4200/4500/4900 Series.)
Specifications
- Actuator Type
Electric
- Brand
KMC Controls
- Control Input
24 VAC, 24 VDC
- Fail-Safe
No
- Input Types
Tri-state, Two-position
- Mounting
V-Bolt/ Screws
- Normality (Fail)
Fail In Place
- Power Supply
24 VAC, 24 VDC
- Selection Guide
Actuator-Only
- Timing (sec)
35
- Torque
25 in-lb
