MEP-3501 | Valve Actuator | Electronic Fail-Safe | On/Off | KMC

KMC | MEP-3501

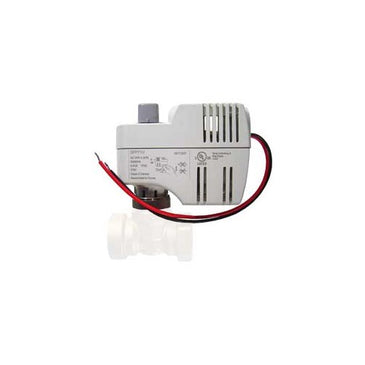

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for MEP-3501

Valve Actuator | Electronic Fail-Safe | On/Off

Description

These globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, and induction units. The compact design of these units allows easy installation within small enclosures. Valve bodies, available in 1/2 to 1" line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.

Features

  •  Choice of tri-state/floating or proportional fail-inplace or two-position (NO or NC) spring-return fail-safe
  • Compact size
  • Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
  • Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed

Specifications

Item Number MEP-3501
Brand KMC
Actuator Type Electric
Actuator Type Valve
Brand KMC Controls
Control Input 24 VAC
Control Input On/Off
Fail-Safe Type Spring
Fail-Safe Yes
Input Types Two-position
Mounting VEZ Valve
Normality (Fail) NC
Power Supply 24 VAC
Selection Guide Actuator-Only
Spring Return Electronic Fail-Safe
Timing (sec) 35
Voltage 24V

Documents and manuals

KMC MEP-3501 Documents
