MCP-80315102 | Actuator: Metal, 1-11/16", 8-13 PSI, Delrin Bushing, Bracket Only | KMC
Actuator: Metal, 1-11/16", 8-13 PSI, Delrin Bushing, Bracket Only
Documents and manuals
Overview
Details for MCP-80315102
Actuator: Metal, 1-11/16", 8-13 PSI, Delrin Bushing, Bracket Only
MCP-8031 Pneumatic Actuators are designed to control small dampers in HVAC air handling systems or air terminal units. They feature a right-angle bracket for mounting to the side of VAV terminals, ductwork, or damper frame. The metal body is also suited to ceiling plenum installations where nonmetallic actuators are not allowed.

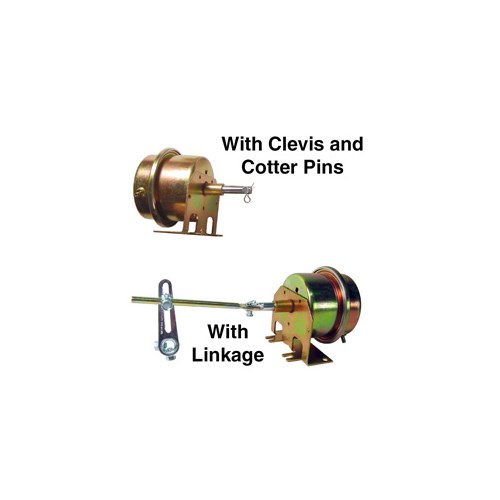

The actuator may be rotated in its bracket (supplied on most models) so air connections can be made where needed. Actuators are supplied with a clevis and optional clevis/cotter pins or crankarm linkage.
Specifications
- Actuator Type
Pneumatic
- Brand
KMC Controls
- Mounting
Bare Delrin Bushing, Bracket, Metal
- PSI Range
8-13 PSI
- Pneumatic Actuator Size
1-11/16
- Selection Guide
Actuator-Only
