MCP-36313001 | Actuator: Rotary, 5-10 PSI, Square Shaft | KMC
Actuator: Rotary, 5-10 PSI, Square Shaft

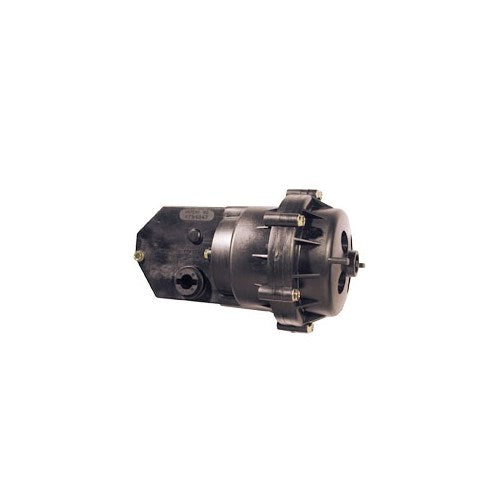

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MCP-36313001
Overview Details for MCP-36313001
Actuator: Rotary, 5-10 PSI, Square Shaft
These rotary pneumatic damper actuators are designed to position VAV terminals and other small dampers in HVAC systems.
Models ending in the “000” designation will mount to 1/2″ diameter damper shafts, or 3/8″ diameter shafts using the HLO-1011 shaft adapter. Models ending with the “001” designation will mount to 3/8″ square damper shafts.
Actuators may be mounted with either side toward damper to allow clockwise or counterclockwise rotation. A non-rotation bracket is supplied with each actuator and a variety of options are available to lock the actuator’s drive hub to the damper shaft.
Specifications
- Actuator Type
Pneumatic
- Brand
KMC Controls
- Mounting
Square Shaft
- PSI Range
5-10 PSI
- Selection Guide
Rotary Actuator
