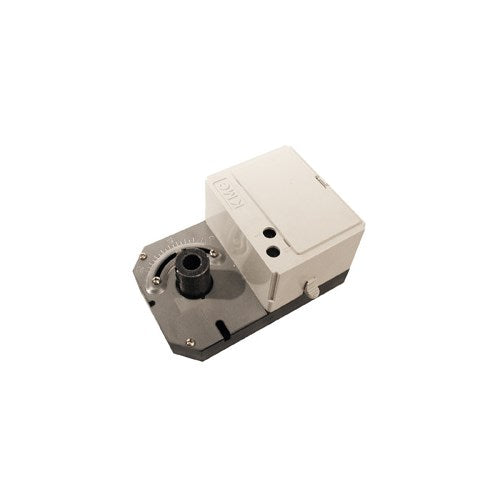

Controller: VAV, CW Close, 50 in-lbs
The analog electronic KMC CSP-5001/5002 VAV Flow Controller-Actuators are pressure-independent combination controller-actuators designed primarily for use on variable air volume terminal units. Air flow is sensed by using a single or multi-point differential (velocity) pressure measuring station or pitot tube (such as an SSS-1000 series airflow sensor). Designed with an onboard flow-through sensor using twin platinum resistance temperature detectors, these models are capable of controlling a velocity setpoint from 0 to 3,300 fpm with an accuracy of 3%.
The CSP-5001 (CCW to close) and CSP-5002 (CW to close) offer full range flow control of VAV terminal units when used with CTE-5xxx room thermostats. Air velocity flow control limits may be set at the thermostat or internal to the CSP-5001/5002. The actuator section provides adjustable stops, magnetic clutch, and a gear disengagement button. Internal status LEDs indicate green for opening and red for closing.
Available control options include proportional or two position electric or hot-water reheat, changeover, dual minimums, fan induction, dual duct, and automation interface.
NOTE: For detailed applications, cross-references, troubleshooting, and other information, see the CSP-5001/5002 Applications Guide and the CTE-5202 Applications Guide. See also the CSP-4702.
Specifications
- Actuator Type
Electric
- Application
VAV
- Brand
KMC Controls
- Control Input
0-10 VDC
- Fail-Safe
No
- Input Types
Proportional
- Mounting
V-Bolt/ Screws
- Power Supply
24 VAC
- Timing (sec)
18 Deg /MIN
- Torque
45 in-lb
- VAV Control
Pressure Independent
- VAV Type
Single Duct
Parts & Accessories
