CCE-3003 | Relay: PE, 3 Stage, SPDT | KMC
Relay: PE, 3 Stage, SPDT
Documents and manuals
Overview
Details for CCE-3003
Relay: PE, 3 Stage, SPDT

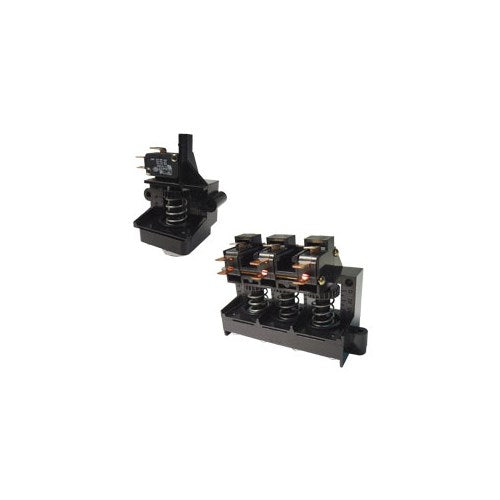

The KMC CCE-3001 is a single-stage pneumatic-electric relay designed for applications where a single pneumatic signal requires one predetermined air pressure setting to actuate an electric switch.
The CCE-3002 is a two-stage pneumatic-electric relay, and the CCE-3003 is a three-stage pneumatic-electric relay. These relays are designed for applications where a single pneumatic air signal requires two or three predetermined air pressure settings, each actuating its own electric switch.
These relays are UL recognized. Their electrical ratings make them ideal for applications such as starting fan induction terminals or controlling one, two, or three stages of electric heating or refrigeration.
ApplicationThe CCE-3000 series relays are not position sensitive and are ideal for starting fan induction terminals or controlling one, two, or three stages of electric heating or refrigeration.
Specifications
Item Number | CCE-3003 |
Brand | KMC |
Brand | KMC Controls |
