WEL11A-601R | BULB WELL ASSY; COPPER BULB WELL; 2-3/8" LONG F/TEMP ACT. CONTROLS | Johnson Controls
Documents and manuals
Johnson Controls WEL11A-601R Documents
Overview
Details for WEL11A-601R

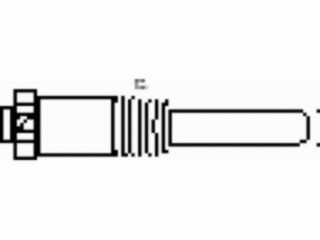

BULB WELL ASSY; COPPER BULB WELL; 2-3/8" LONG F/TEMP ACT. CONTROLS
Description
Bulb Wells are used in conjunction with Remote Bulb Temperature Controls where bulb insertion into a vessel or container to sense temperature is required. These wells are used with TE-6000 and TE-6300 Series Sensors
A variety of shapes, sizes, and materials are available for a wide range of applications. Refer to the appropriate temperature control for the exact bulb well required.
Accessories
The Code No. FTG13A-600R Packing Nut Assembly is used in applications where the temperature does not fall below -35°F (-37°C). The maximum liquid pressure limit is 150 psig (1,034 kPa). Use with Style 1, 3/8 in. diameter bulb for direct immersion application. A19s require models with support tube; A70s and A72s do not need support tubes.
Repair Information
If the Bulb Wells fail to operate within thier specifications, replace the unit. For a replacement Bulb Well, contact the nearest Johnson Controls® representative.
- BULB WELL ASSEMBLY, COPPER BULB WELL, 2-3/8" LONG F/ TEMP ACT. CONTROLS
Specifications
Item Number | WEL11A-601R |
Brand | Johnson Controls |
Category | Temperature Sensors |
Section | Accessories - Temperature |
SubCategory | Accessories - Temperature |
