VG7443LT+3008D | NC3/4 NPT7.3W/3000 4-8#; NC3/4 NPT7.3W/3000 4-8# | Johnson Controls

NC3/4 NPT7.3W/3000 4-8#; NC3/4 NPT7.3W/3000 4-8#

Description

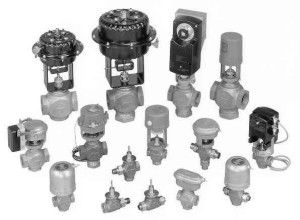

VG7000 Series Stainless Steel Trim Globe Valves with V-3000 Pneumatic Actuators control hot or chilled water, or 100 psig saturated steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

•  Rugged actuator die-cast enclosure fits VG7000 valves 1/2 through 1-1/4 in.
•  Effective diaphragm area: 8 sq. in.
•  Controls: hot or chilled water, 100 psig saturated steam
•  Valve trim: stainless steel
•  Packing: spring-loaded PTFE and elastomer V-rings
•  Maximum supply air pressure: 25 psig (172 kPa)
•  Fluid temperature: 35°F to 338°F (2°C to 170°C)
•  Valve body static pressure rating: ANSI Class 250
•  Factory or field assembly
•  For optional V-9502-90 Positioner, add a P to the end of the code number (not available with enclosed spring actuator)

• 3/4" 2-Way Globe Valve
• CV 7.3
• 04-08 psig
• 8 sq. in. Effective Diaphragm Area
• Spring Return - Normally Closed
• Exposed Actuator
• Female NPT
• Stainless Steel Trim
