VG7243RT+823C00 | 2W1-1/2NPT28.9 MP82 3-7# | Johnson Controls

2W1-1/2NPT28.9 MP82 3-7#

Description

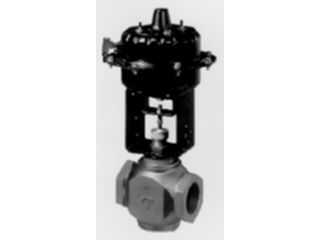

VG7000 Series Stainless Steel Trim Globe Valves with MP82 Series Pneumatic Actuators control hot or chilled water, or 100 psig saturated steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

• industrial-grade, drawn-steel actuator
• corrosion-resistant, electro-painted finish
• effective diaphragm area: 25 sq. in.
• controls: hot or chilled water, 100 psig saturated steam
• valve trim: stainless steel
• packing: spring-loaded PTFE and elastomer V-rings
• maximum supply air pressure: 25 psig (172 kPa)
• fluid temperature: 35°F to 338°F (2°C to 170°C), 100 psig saturated steam
• valve body static pressure rating: ANSI Class 250
• factory or field assembly
• For optional V-9502-95 Positioner, change 00 at the end of the code number to 01
