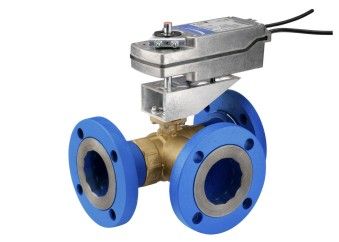

VG18A5HV+94NGGA | 3" 3W BALL VALVE 176 CV;; M9220-GGA-3 SPRING CW; 0-10V PROP. CONTROL; WITHOUT SWITCHES | Johnson Controls

Johnson Controls | VG18A5HV+94NGGA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5HV+94NGGA

Documents and manuals

Johnson Controls VG18A5HV+94NGGA Documents

Overview

Details for VG18A5HV+94NGGA

3" 3W BALL VALVE 176 CV;; M9220-GGA-3 SPRING CW; 0-10V PROP. CONTROL; WITHOUT SWITCHES

Description

The VG1000 Series Flanged Ball Valves are primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems. The valves come in sizes of 2-1/2 in., 3 in., 4 in., 5 in., and 6 in. These American Society of Mechanical Engineers (ASME) Class 150 flanged valves come in both two- and three-way configurations. Johnson Controls offers valve, linkage, and actuator assemblies for factory or field mounting with either spring return or nonspring return actuators. Refer to the VG1000 Series Flanged Ball Valves Product Bulletin (LIT-12011228) for important product application information and single point of contact information.


  • 3" 3-Way Characterized Control Valve - Large Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
  • CV 176.0/88.0
  • 24 VAC/VDC
  • Proportional [0(2) to 10 VDC]
  • Spring Return - Normally Closed
  • 177 in-lb Torque
  • 48 in. Halogen Free Cable
  • ANSI 150 Flange
  • 150 sec Runtime
  • Close-Off 50 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 100.00 - 199.99

Specifications

Item Number VG18A5HV+94NGGA
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 3 - 3-Way
Voltage 24V
