Documents: VG1875C+943GGAL

Datasheet Installation Instructions More Info

VG1875C+943GGAL | 1" 3W BALL VALVE 11.7CV; SS TRIM; SWEAT END CONN;PROP; SP CLOSED; W/O SW; CUSTOM 10FT CABLE | Johnson Controls

Brand: Johnson ControlsSKU: VG1875C+943GGAL

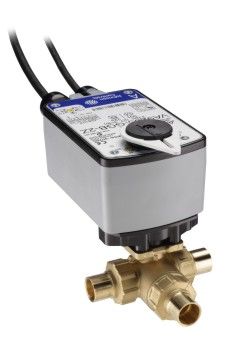

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VG1875C+943GGAL

Jump to: Overview & Specifications Reviews

Overview Details for VG1875C+943GGAL

1" 2W BALL VALVE 18.7CV; SS TRIM; SWEAT END CONN;PROP; SP CLOSED; W/O SW; CUSTOM 10FT CABLE

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

1" 3-Way Characterized Control Valve
Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
CV 11.7/7.4
24 VAC/VDC
Proportional [0(2) to 10 VDC]
Spring Return - Normally Closed
27 in-lb Torque
120 in. Plenum Cable
Sweat
90 sec Runtime
Close-Off 200 psi
Stainless Steel Ball & Stem
NEMA 2
010.00 - 014.99

Specifications

Item Number	VG1875C+943GGAL
Brand	Johnson Controls
Category	Valves & Valve Actuators
Control Input	Modulating
Control Valves Type	Ball Valve
Section	Ball 3-Way w/ Electric Actuator
Section	Valves & Actuators
Spring Return	Spring Return
SubCategory	Ball 3-Way w/ Electric Actuator
Valve Size	1 - 3-Way
Voltage	24V
