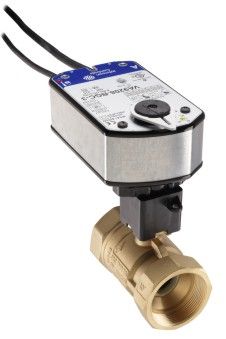

VG1245FSH948GGA | 2" 2W BALL VALVE 46.8CV; SS TRIM; HI TEMP LINKAGE;PROP; SPRG CLOSED; W/O SW | Johnson Controls
Documents and manuals
Johnson Controls VG1245FSH948GGA Documents
Overview
Details for VG1245FSH948GGA
2" 2W BALL VALVE 46.8CV; SS TRIM; HI TEMP LINKAGE;PROP; SPRG CLOSED; W/O SW
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- 200 psi Closeoff Pressure Rating — provides tight shutoff.
- Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- 300 Series Stainless Steel Ball and Stem Assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284°F (-30°C to 140°C) or where a higher degree of corrosion protection is desired.
- 500:1 Rangeability — provides accurate control under all load conditions.
Repair Information
If the VG1000 Series Ball Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls representative.
- 2" 2-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22?F to 284?F
- CV 46.8
- 24 VAC/VDC
- Proportional [0(2) to 10 VDC]
- Spring Return - Normally Closed
- 70 in-lb Torque
- 120 in. Plenum Cable
- Female NPT
- 150 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 2
Specifications
Item Number | VG1245FSH948GGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 2 - 2-Way |
Voltage | 24V |
