VG1241AE+9A4AGA | 1/2" 2W BALL VALVE 1.9CV; BRASS TRIM NON-SPR RET VA9104-AGA-2S NO SWITCH FLOATING CONTROL | Johnson Controls

Johnson Controls | VG1241AE+9A4AGA

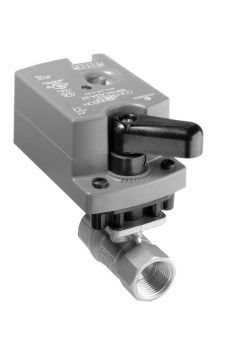

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1241AE+9A4AGA

Documents and manuals

Johnson Controls VG1241AE+9A4AGA Documents

Overview

Details for VG1241AE+9A4AGA

1/2" 2W BALL VALVE 1.9CV; BRASS TRIM NON-SPR RET VA9104-AGA-2S NO SWITCH FLOATING CONTROL

Description

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control

Features

  • Forged Brass Body — provides 580 psig static pressure rating.
  • 200 psi Closeoff Pressure Rating — provides tight shutoff.
  • Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
  • Chrome-Plated Brass Ball and Stem Assembly Standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
  • 500:1 Rangeability — provides accurate control under all load conditions.

  • 1/2" 2-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
  • CV 1.9
  • 24 VAC
  • Floating Point Without Timeout
  • Non-Spring Return
  • 35 in-lb Torque
  • 48 in. Plenum Cable
  • Female NPT
  • 60 sec Runtime
  • Close-Off 200 psi
  • Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
  • NEMA 2

Specifications

Item Number VG1241AE+9A4AGA
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input On/Off
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Non-Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 0.5" - 2-Way
Voltage 24V
