VA9203-BUA-2 | ROTARY ACTUATOR; 27 LB IN; (8N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL | Johnson Controls

ROTARY ACTUATOR; 27 LB IN; (8N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL

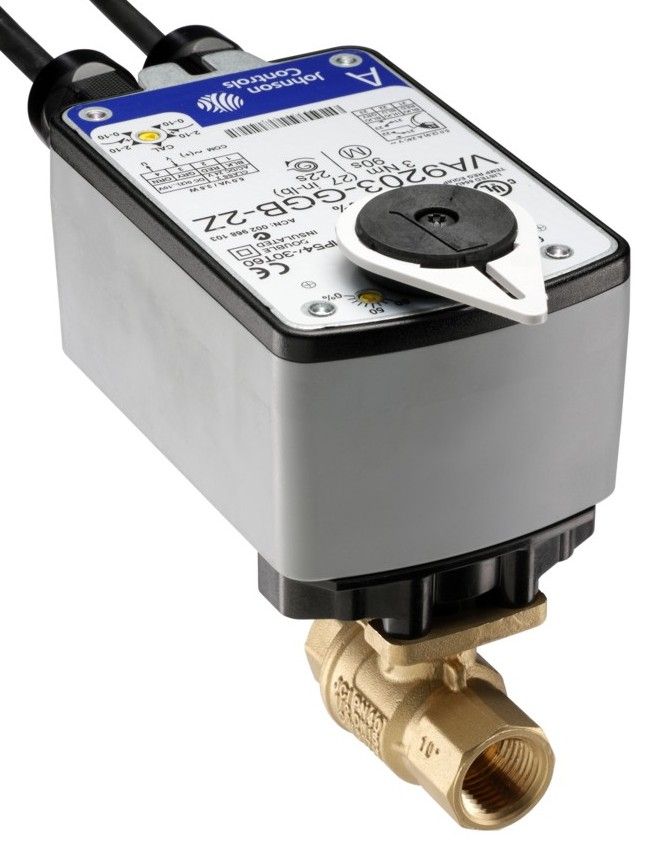

The VA9203-Bxx-2 Series On/Off Electric Spring Return Actuators are direct-mount valve actuators that operate on AC 24 V power at 50/60 Hz, DC 24 V power, or AC 85 to 264 V power at 50/60 Hz. These bidirectional actuators are used for on/off control on Johnson Controls® VG1000 Series 1/2, 3/4, and 1 in. (DN15, DN20, and DN25) ball valves in Heating, Ventilating, and Air Conditioning (HVAC) applications. An integral line voltage auxiliary switch, available only on the VA9203-xxB-2 models, indicates end-stop position, or performs switching functions within the selected rotation range.
