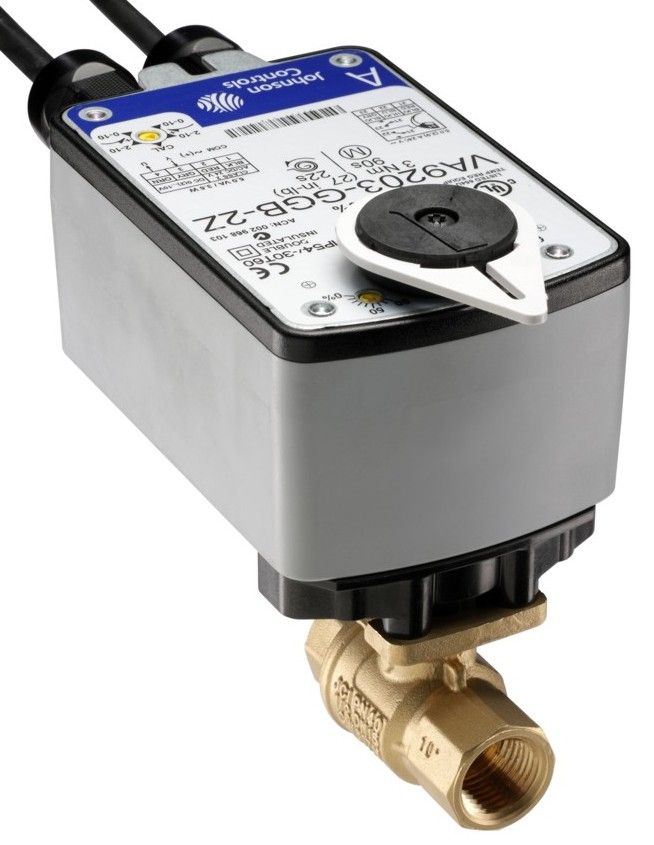

VA9203-BGB-2 | ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL | Johnson Controls

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL

Description

The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on AC/DC 24 V power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls® VG1000 Series 1/2, 3/4, and 1 in. (DN15, DN20, and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator. The series includes the following control options:

• On/Off, 24 V, or 85 to 264 VAC power
• On/Off and Floating Point, 24 V power
• Proportional, 24 V power, for 0(2) to 10 VDC or 0(4) to 20 mA Control Signal

An accessory crankarm and remote mounting kit are available for applications where the actuator cannot be direct-coupled to the damper shaft. An optional line voltage auxiliary switch indicates an end-stop position or performs switching functions within the selected rotation range.

• Valve Actuator
• 24 VAC/VDC
• On/Off
• Spring Return
• 27 in-lb Torque
• 1 x SPDT
• 48 in. Appliance Cable
• <75 sec Runtime
• NEMA 2
