VA9203-BGA-2 | ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL | Johnson Controls
VA9203-BGA-2 | ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL | Johnson Controls
Johnson Controls | VA9203-BGA-2

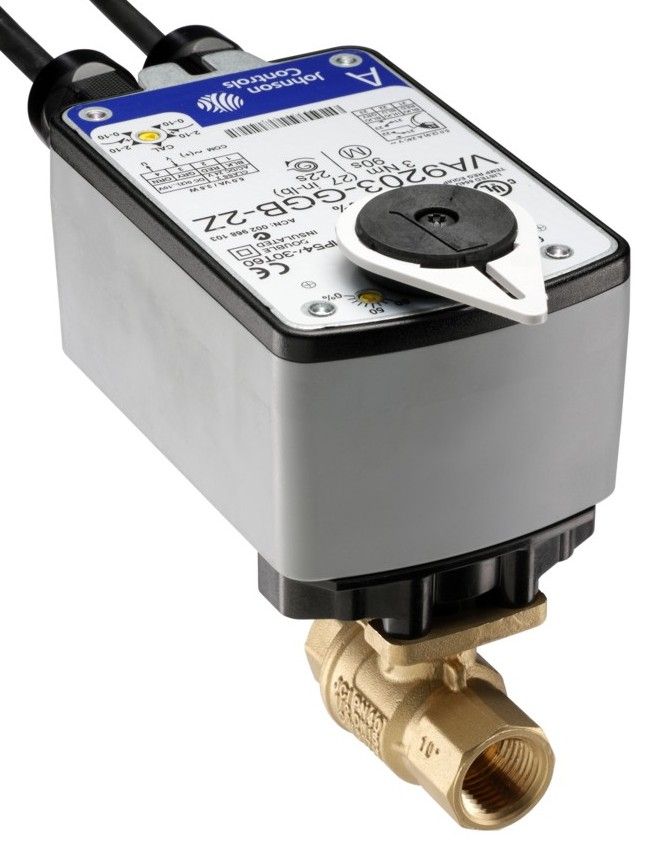

The photo is for representation purposes only and may not be a photo of product being purchased.

VA9203-BGA-2 | ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL | Johnson Controls

SKU: VA9203-BGA-2Brand: Johnson ControlsCondition: New

Details for VA9203-BGA-2

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL

Contractor Rewards Program

Learn more about POINTS PLUS Contractor Rewards Program

Already part of the POINTS PLUS Program?
Enter your Contractor ID # in the comment field of your order on Blackhawk Supply

Brand: Johnson ControlsSKU: VA9203-BGA-2
List Price
$292.00
$94.00
Availability: This product is currently available
Orders over $999 ship FREE
Shipping and Returns Terms

Johnson Controls VA9203-BGA-2 Documents

Details for VA9203-BGA-2

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR; ON/OFF CONTROL

Description

The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on AC/DC 24 V power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls® VG1000 Series 1/2, 3/4, and 1 in. (DN15, DN20, and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator. The series includes the following control options:

• On/Off, 24 V, or 85 to 264 VAC power

• On/Off and Floating Point, 24 V power

• Proportional, 24 V power, for 0(2) to 10 VDC or 0(4) to 20 mA Control Signal

An accessory crankarm and remote mounting kit are available for applications where the actuator cannot be direct-coupled to the damper shaft. An optional line voltage auxiliary switch indicates an end-stop position or performs switching functions within the selected rotation range.

Features

  • direct mounting with a single screw
  • electronic stall detection
  • double-insulated construction
  • microprocessor-controlled brushless DC motor (-AGx and -GGx types)
  • external mode selection switch (-AGx and -GGx types)
  • integral cables with colored and numbered conductors
  • integral connectors for 1/2 in. (13 mm) threaded conduit connector(s)
  • optional integrated auxiliary switch
  • plenum rated models
  • optional thermal barrier
  • available weather shield for field mounting
  • override control (Proportional Models only)
  • Underwriters Laboratories (UL), CE Mark, and C-Tick Compliance
  • manufactured under International Standards Organization (ISO) 9001 Quality Control Standards
  • 5-year warranty
