VA9104-IGA-3S | ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W/TERMINAL BLOCK | Johnson Controls

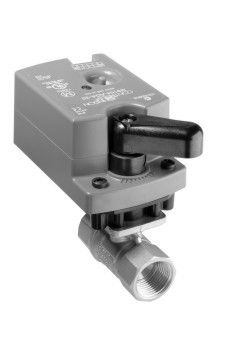

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA9104-IGA-3S
Suggested Alternatives
Overview Details for VA9104-IGA-3S
ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W/TERMINAL BLOCK
Description
The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V or 100 to 240 V power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications.
The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lb·in (4 N·m). The nominal travel time is 60 seconds at 60 Hz for 90° of rotation.
Refer to the VA9104 Series Electric Non-Spring Return Valve Actuators Product Bulletin (LIT-12011050) for important product application information.
Features
- 35 dBA Maximum Audible Noise Rating
- Synchronous Drive
- 100,000 Cycle Rating
- Direct Mounting with Single Screw
- Manual Override
- Plenum Cable or Screw Terminal Electrical Connections
- 3/8 in. Flexible Metal Conduit Connector on VA9104-xxA-2S Models
- Available Weather Shield for Field Mounting
- Optional M9000-561 Thermal Barrier
- 5-Year Warranty
Specifications
| Item Number | VA9104-IGA-3S |
| Brand | Johnson Controls |
| Actuator Type | Valve |
