Johnson Controls Va9104-gga-3s Electric Valve Actuator Nsr 0-10 Vdc Prop Ctl No Sw W/terminal Block For Vg1000 Ball Valves | Blackhawk Supply
Johnson Controls | VA9104-GGA-3S

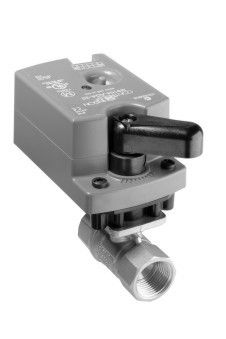

The photo is for representation purposes only and may not be a photo of product being purchased.
free shipping on orders over $999* excellent customer satisfaction secure online payment 5-star customer service
Blackhawk Supply Google Trusted Store Black Hawk Supply BBB Business Review

VA9104-GGA-3S | ELECTRIC VALVE ACTUATOR; NSR 0-10 VDC PROP CTL NO SW W/TERMINAL BLOCK FOR VG1000 BALL VALVES | Johnson Controls

SKU: VA9104-GGA-3S Brand: Johnson Controls Condition: New Sale price Compare at $317.78
Regular price
$107.25 each

Details

Johnson Controls part#: VA9104-GGA-3S

ELECTRIC VALVE ACTUATOR; NSR 0-10 VDC PROP CTL NO SW W/TERMINAL BLOCK FOR VG1000 BALL VALVES

Resources

Description

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V or 100 to 240 V power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lb?in (4 N?m). The nominal travel time is 60 seconds at 60 Hz for 90° of rotation.

Features

  • 35 dBA Maximum Audible Noise Rating
  • Synchronous Drive
  • 100,000 Cycle Rating
  • Direct Mounting with Single Screw
  • Manual Override
  • Plenum Cable or Screw Terminal Electrical Connections
  • 3/8 in. Flexible Metal Conduit Connector on VA9104-xxA-2S Models
  • Available Weather Shield for Field Mounting
  • Optional M9000-561 Thermal Barrier
  • 5-Year Warranty
