VA-907X-601 | Single Auxiliary Switch for VA-9074 and VA-9075 Series Modulating Electric Actuators | Johnson Controls
Documents and manuals
Johnson Controls VA-907X-601 Documents
Overview
Details for VA-907X-601
VA-907X-601;AUX;SW;VA9070
Description

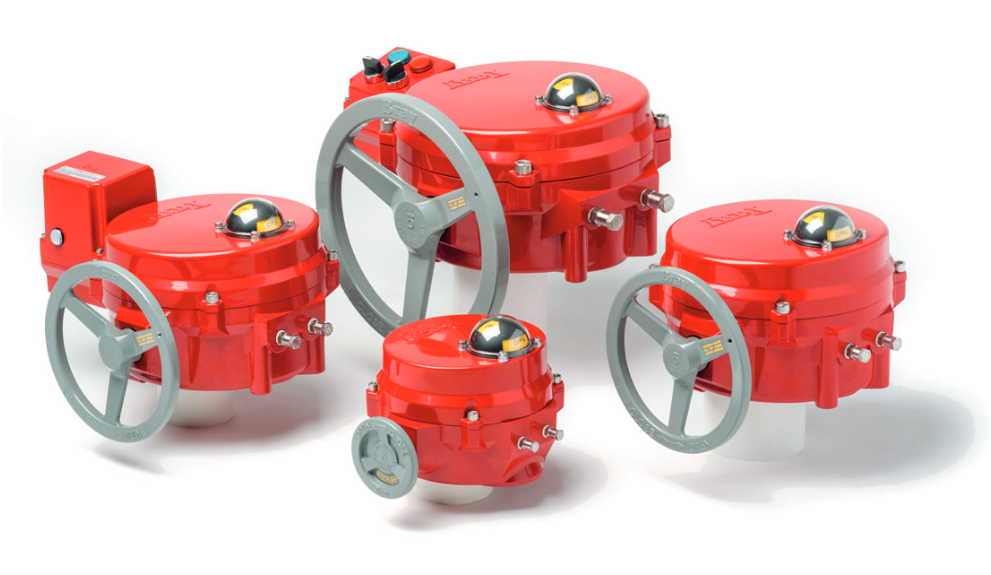

The VA-9070 Series Electric Rotary Actuators for Two-Position and Modulating Service are designed for direct mounting on VF Series Butterfly Valves. The VA-9070 is available in eight different sizes, for two-position and modulating service on VF Series Standard-Pressure, Standard-Temperature Butterfly Valves and VF Series High-Pressure, High-Temperature Butterfly Valves. Refer to the VA-9070 Series Electric Rotary Actuators for Two-Position and Modulating Service Product Bulletin (LIT-977319) for important product application information.
Features
- low profile and lightweight design
- built-in motor overload protection
- pre-wired actuator switches to terminal block; field-configurable power and input signals
- patented travel limit switch cam design
- external manual handwheel override
- rugged, die-cast aluminum National Electrical Manufacturers' Association (NEMA) 4, 4X, IP65 Type enclosure and captive housing screws
- valve status display
- heater/thermostat
Specifications
Item Number | VA-907X-601 |
Brand | Johnson Controls |
