V246GE1-001C | WATERVALVE 1 1/4IN NPT DA; HP REFRIG; 2-WAY WATER REG VLV; 1-1/4" NPT DA COMMERCIAL 200-400PSI | Johnson Controls
Overview
Details for V246GE1-001C
WATERVALVE 1 1/4IN NPT DA; HP REFRIG; 2-WAY WATER REG VLV; 1-1/4" NPT DA COMMERCIAL 200-400PSI
Description

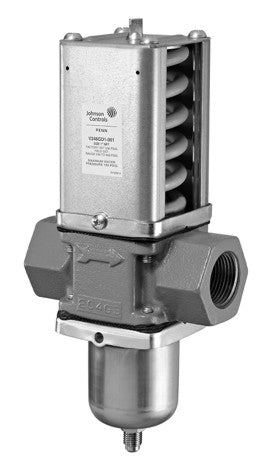

The V246 Series Two-Way Pressure-Actuated WaterRegulating Valves for High-Pressure Refrigerants come in two types of control action: direct acting and reverse acting. V246 valves regulate water flow to control refrigerant head pressure in systems with water-cooled condensers.
The V246 Series Valves are available in 3/8 in. through 2 in. sizes and have a maximum allowable water pressure of 150 psig (10.3 bar). Direct acting V246 valves have an adjustable opening point in a refrigerant pressure range of 200 to 400 psi (13.8 to 27.6 bar), and reverse acting valves have a range of 135 to 300 psi (9.3 to 20.7 bar). V246 valves may be used with standard non-corrosive refrigerants.
Maritime models, which have nickel copper (Monel®) internal parts, are available for applications where the media may be corrosive to the internal parts. Refer to the V246 Series 2-Way Pressure-Actuated WaterRegulating Valves for High-Pressure Refrigerants Product Bulletin (LIT-12011514) for important product application information.
Specifications
Item Number | V246GE1-001C |
Brand | Johnson Controls |
Category | AC Refrigeration Accessories |
