TE-68NT-1N00S | WMR/CLR TEMP SEN 1K NI WL; WALL MOUNT TEMPERATURE SENSOR;1K OHM NICKEL WARMER/COOLER | Johnson Controls

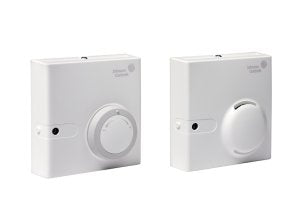

Johnson Controls | TE-68NT-1N00S
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for TE-68NT-1N00S

WMR/CLR TEMP SEN 1K NI WL; WALL MOUNT TEMPERATURE SENSOR;1K OHM NICKEL WARMER/COOLER

Description

The TE-68xx-xN00S Series provides temperature sensing in room wall mount applications. It allows local setpoint temperature adjustment and temporary occupancy override.

A warmer/cooler dial is included on certain models for minor temperature adjustments from the setpoint. An occupancy override button allows the user to request a time-ofday scheduling override when the space is occupied outside of the normal occupied hours schedule. All sensors have DIP switches that enable or disable unit functions.

Depending on the model chosen, the wires connecting the sensor to the controller can be terminated using a screw terminal block or modular jack connection, offering wiring flexibility. All models include a Zone Bus access port for connecting accessories to access the 6-pin modular jack. This feature allows a technician to commission or service the controller via the sensor

Features

  • controller configuration switch — allows users to adjust room comfort and to choose occupancy features that match the application and controller
  • occupancy Light-Emitting Diode (LED) indicator — displays the current operating mode of the controller (VMA1200 and VMA1400 Series controllers only)
  • manual override Pushbutton (PB) — overrides time-of-day scheduling when the space is occupied outside of normal occupied hours schedule

Specifications

Item Number
TE-68NT-1N00S
Brand
Johnson Controls
Manufacturer
Johnson Controls
Thermostat Type
Thermostat Guards and Accessories

Documents

Johnson Controls TE-68NT-1N00S Documents

Contractor Rewards Program

Learn more about POINTS PLUS Contractor Rewards Program

Already part of the POINTS PLUS Program?
Enter your Contractor ID # in the comment field of your order on Blackhawk Supply

Reviews

Brand: Johnson ControlsSKU: TE-68NT-1N00S

Web Price:

$53.88
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F
