WELL TEMP SEN 6"10K; WELL INSERTION TEMPERATURE SENSOR 10K OHM THERMISTOR 6 IN. PROBE

Description

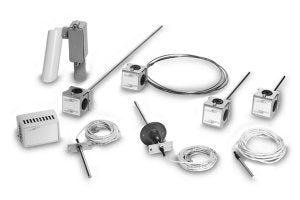

The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and VAV Modular Assembly (VMA) flangemount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models.

Sensors are available in the following types:

• 1k ohm thin-film nickel
• 1k ohm nickel averaging
• 1k ohm thin-film platinum
• 100 ohm platinum equivalent averaging
• 1k ohm platinum equivalent averaging
• 2.2k (2,252) ohm thermistor
• 10k ohm thermistor, Johnson Controls® Type II Refer to the TE-6300 Series Temperature Sensors Product Bulletin (LIT-216320) for important product application information.

Features and Benefits

• Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and to reduce both commissioning time and cost.
• Full Line of Versatile Sensors—Supports all your temperature sensing needs from a single supplier: wall-mount, outdoor-air, duct, duct-averaging, strap-mount, wellinsertion, and flange-mount duct-probe.
• Single Assembly Ordering—Simplifies ordering; provides a complete assembly in one box.
• Models Featuring an Integral National Pipe Thread (NPT) Adaptor—Increase sensor connection strength, which eliminates the need for a special adaptor.
• Models with a Stainless Steel Sensor Probe—Protect the sensor while increasing corrosion resistance.
• Metal Enclosure (TE-63xxE, TE-63xxM, and TE-63xxV Models)—Meets plenum requirements.
• Models Featuring a Retainer for the Sensor Holder—Allow you to lock the sensor holder into the conduit box.
• Brushed Stainless Steel Mounting Plate—Offers a durable, aesthetically pleasing design.
• Low Profile Flush Mount Design (TE-63xxF Models)—Provides a tamperproof installation ideally suited for schools, sporting complexes, retailers, prisons, and more.

All TE-6300 Series Temperature Sensors are two-wire, passive, resistance-output devices

TE-63xxA

Models The TE-63xxA (adjustable length) models:

• provide a thermoplastic mounting flange and gland nut to adjust the length of the probe
• include two hex-head self-drilling screws for mounting
• come equipped with a 10 ft (3 m) plenum-rated cable with 1/4 in. (6.35 mm) internal thread insulated quick-connect terminations on leads

TE-63xxE

Models The TE-63xxE (economizer mount) models:

• provide a stainless steel mounting flange
• include two hex-head self-drilling screws for mounting
• meet UL 1995 plenum use requirements

TE-63xxF

Models The TE-63xxF (flush mount) models:

• provide a low profile when installed in an electrical box
• thermally isolate sensor from the wall with a foam pad
• offer a rugged stainless steel cover
• provide 22 AWG (0.6 mm diameter) lead wires with low voltage installation

TE-63xxM

Models The TE-63xxM (metal enclosure) models:

• come with a corrosion-protected steel enclosure with a 0.88 in. (22 mm) hole for a 1/2 in. (12.7 mm) conduit fitting
• include two hex-head self-drilling screws for mounting the duct and duct-averaging models
• offer either a direct-mount or 1/2-14 NPT threaded well sensor holder for mounting in TE-6300W Series Thermowells (well models; order the thermowell separately)
• provide optional well sensor holders (order separately) to mount duct models in thermowells
• meet UL 1995 plenum use requirements
• offer optional accessory kit (order separately) to replace plastic hole plug and wiring bushing to meet International Mechanical Code (IMC) requirements

TE-63xxP

Models The TE-63xxP (plastic enclosure) models:

• provide a thermoplastic conduit box with 1/2-14 internal NPT for connecting to conduit
• provide aluminum mounting plate and 1/2-14 internal NPT hub mounting options for the duct and duct-averaging models
• use the 1/2-14 internal NPT to mount the outdoor air models directly to rigid conduit
• include sensor holders to mount duct models in thermowells (order thermowell separately)
• offer an optional accessory metal cover and gasket kit (order separately) to replace the plastic cover to meet UL 1995 plenum use requirements
• include a replaceable sensing probe on duct-probe, outdoor-air, and well-insertion models

TE-63x4P

Wall Mount Models The TE-63x4P (plastic enclosure) models:

• come with a white thermoplastic ventilated cover with a brushed aluminum face plate and a steel mounting plate for surface mounting
• include faceplates for both horizontal and vertical mounting
• offer an accessory mounting kit for mounting to a standard electrical box
• offer optional covers

TE-63xS Models The TE-63xS (strap-mount) models:

• provide a 1/4 in. (6.35 mm) diameter stainless steel probe without an enclosure • include three cable ties for mounting to pipe up to 2-5/8 in. (67 mm) in diameter
• come equipped with a 10 ft (3 m) plenum-rated cable
• meet UL 1995 plenum use requirements
• offer an accessory mounting kit for mounting to a pipe up to 11 in. (280 mm) in diameter

TE-63xxV Models

The TE-63xxV (VAV flange mount) models:

• provide a stainless steel mounting flange with two hex-head self-drilling mounting screws
• come equipped with a 10 ft (3 m) plenum-rated cable with 1/4 in. (6.35 mm) internal thread insulated quick-connect terminations on leads
• meet UL 1995 plenum use requirements

Repair Information

If the TE-6300 Series Temperature Sensor fails to operate within its specifications, replace the unit. For information on replacement temperature sensors and replacement sensor probes, refer to the TE-6300 Series Temperature Sensors Product Bulletin (LIT-216320).

• TE-6300 Series Temperature Sensor
• 10K-2 Thermistor
• Resistance Output
• 6" Well Insertion Probe
• Metal Enclosure
