THERMOM 0/100F; 3-1/2"

Description

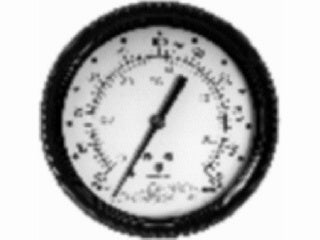

The T-5500 Series Pneumatic Temperature Indicator provides continuous indication of the temperature measurement of a transmitter in a 3 to 15 psig (21 to 105 kPa) pneumatic transmission system.

Features

• 3-1/2 in. dial size, ± 1/2% accuracy
• equivalent Fahrenheit and metric scale printed on dial face. The dial range must match the range of the transmitter which is being used.
• easy readability
• removable clear plastic lens cover for cleaning and recalibration
• equipped to be flush or surface mounted
• notched U-clamps for flush-mounting break off to accommodate panel thicknesses of 1/16 to 3/4 in. (2 to 19 mm)

• Pneumatic Temperature Indicators
• Flush Or Surface Mounting
• 03 - 15 PSIG [21 - 105 kPA] Pressure Range
• Temperature Range 00 - 100 Deg F / -17 - 37 Deg C
• 0.125 inch NPT Air Connection
• 3.5 inch Dial Size
