P499RCP-105K | PRESSURE TRANSDUCER; 2M WIRE HARNESS; 0-500 PSIG 0.5 TO 4.5 VDC RATIOMETRIC OUTPUT SIGNAL | Johnson Controls
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Johnson ControlsSKU: P499RCP-105K

Web Price:

$150.04
Availability: This product is currently available to purchase
Orders over $999 ship FREE*
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

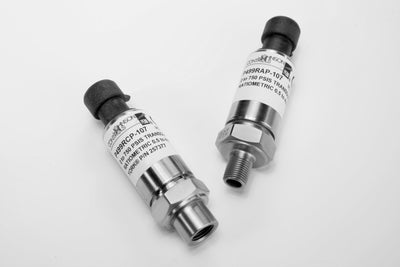

P499RCP-105K | PRESSURE TRANSDUCER; 2M WIRE HARNESS; 0-500 PSIG 0.5 TO 4.5 VDC RATIOMETRIC OUTPUT SIGNAL | Johnson Controls

Johnson Controls | P499RCP-105K
The photo is for representation purposes only and may not be a photo of product being purchased.
5 Works cool
Replaced the pressure transducer for my car’s AC and I’m surprised at how cool it is now. My friend recommended this product to me and decided to test it out. He was right! I had to go on a long road trip and was completely comfortable with the AC on medium even if it’s 100 degrees outside. I already ordered one for my other car which also has an airconditioning unit that doesn’t cool to my satisfaction. Awesome product and I highly recommend this.
5 Recommended
The AC in my car hasn't cooled to my satisfaction for a few months now and it turns out that its pressure transducer was faulty. It's been a year and a half since I bought my first transducer here (yes, I waited that long to write a review) and it works great! It was very easy to install and I had no problems with it when I tried it out. I am amazed at how much better it cools now. I’m glad I have this product. Thanks!

Overview

Details for P499RCP-105K

PRESSURE TRANSDUCER; 2M WIRE HARNESS; 0-500 PSIG 0.5 TO 4.5 VDC RATIOMETRIC OUTPUT SIGNAL

The P499 Series Electronic Pressure Transducers are compact, economical, rugged, direct-mount pressure transducers designed for use in commercial refrigeration and air conditioning applications. These transducers produce an analog signal based on the sensed pressure. The P499 Series transducers feature environmentally protected electronics with stainless steel construction. The digitally compensated P499 transducers are highly accurate over a broad temperature range, resisting the effects of wide ambient temperature swings, high humidity, condensation, and icing. The pressure port is machined from a solid piece of 17-4PH stainless steel. No O-rings, organic materials, or welds are exposed to the pressure media, allowing for a leak-proof, all-metal, sealed pressure system. The P499 transducers operate with any corrosive or non-corrosive pressure medium that is compatible with 17-4PH stainless steel, including water, condensate, carbon dioxide, glycol, most refrigerants, including ammonia, and many other compatible fluids and gases.
  • ± 01.50% FS
  • INTERNAL

Specifications

Item Number P499RCP-105K
Brand Johnson Controls
Category Pressure
Section Differential Pressure Transmitters
Sensor Pressure
SubCategory Differential Pressure Transmitters

Documents and manuals

Johnson Controls P499RCP-105K Documents
