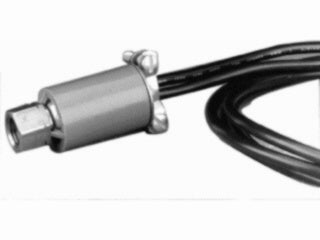

P100EE-79C | ENCAPSULATED PRES CONTROL; SPDT; CI 370PSI; CO 300PSI; 48" WIRE; 1/4" FEM FLARE W' DEPRESSOR | Johnson Controls

ENCAPSULATED PRES CONTROL; SPDT; CI 370PSI; CO 300PSI; 48" WIRE; 1/4" FEM FLARE W' DEPRESSOR

Description

P100 Series switches are encapsulated, nonadjustable, single-pole, single-throw (SPST), direct-mount switches for use with non-corrosive refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high action.

Refer to the P100 Series Encapsulated Pressure Controls Product Bulletin (LIT-121485) for important product application information.

Features

• compact size and light weight allow for direct mounting
• trip-free manual reset (manual reset models); contacts cannot be overridden by continued depression of the reset button
• use with all non-corrosive refrigerants
• encapsulated switch, dust tight
• 1/4 in. Internal flare fitting with built-in Schrader type depressor is standard
• electrical connections are made to 48 in. leads Applications
• low limit, high limit, and fan cycling control in commercial refrigeration
• ice machines
• food service equipment

Repair Information

If the P100 Series Encapsulated Pressure Switches fails to operate within its specifications, replace the unit. For a replacement switch, contact the nearest Johnson Controls® representative
